TEXTILE APPLICATIONS FOR 'FOURWENTS' ROTARY JOINTS/UNIONS & ACCESSORIES EQUIVALENT TO FIT AGAINST MAIER'S, JOHNSONS, BARCO, DEUBLIN, FLUITEN, OMPI, DUFF-NORTON ETC.
APPLICATIONS |
'FOURWENTS' ROTARY JOINT MODEL CATEGORY |
REMARKS |
|---|---|---|

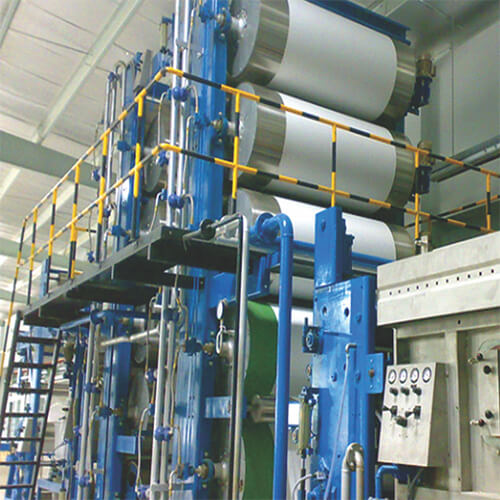

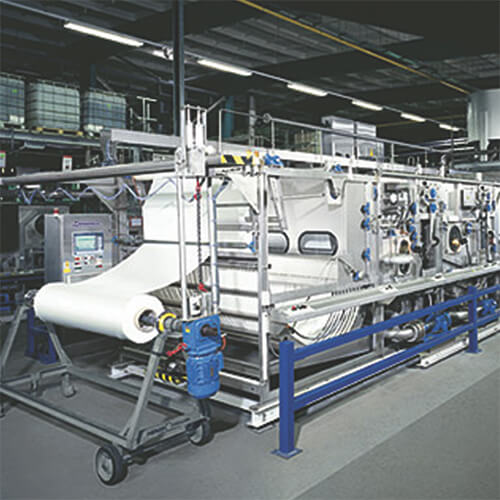

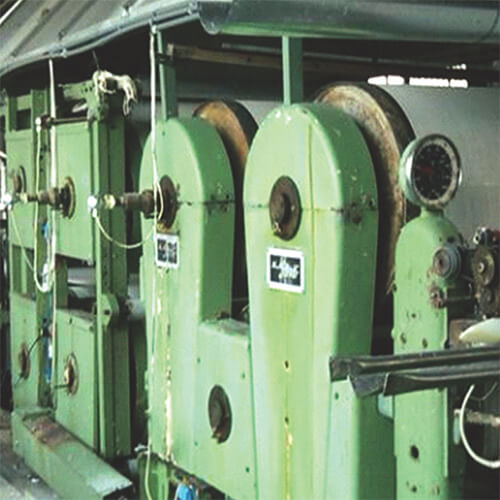

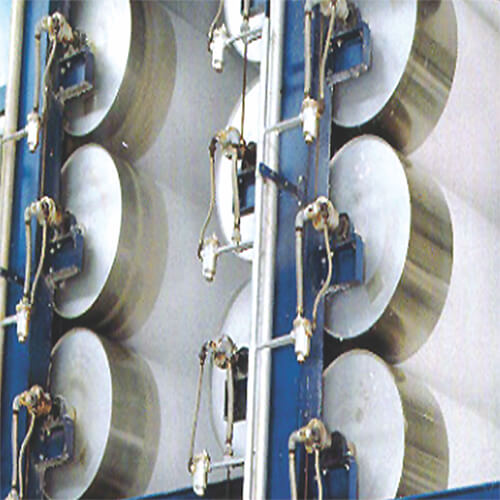

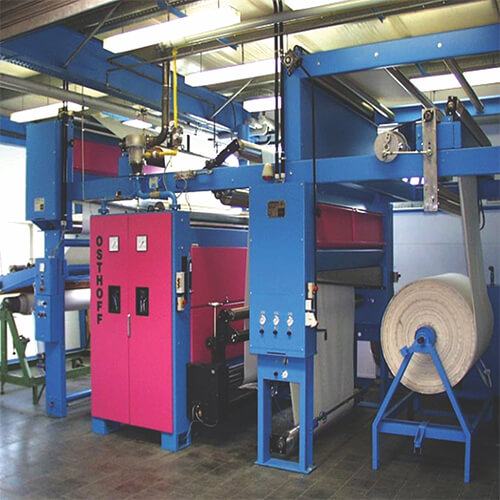

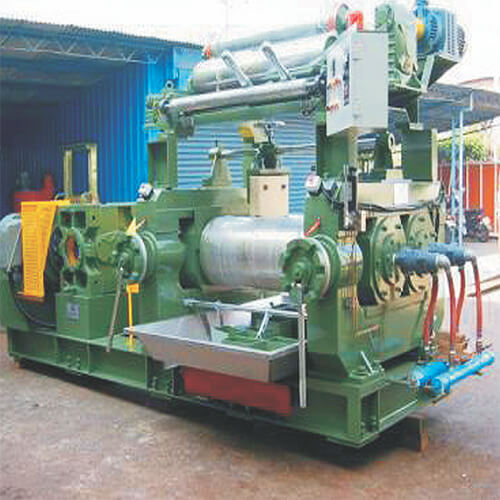

| TEXTILE PROCESSING | FMU SERIES FJU SERIES FBU SERIES FDU SERIES |
FOR STEAM, HOT OIL COOL & HOT WATER |
|
||
|
||
|
FMU SERIES FJU SERIES FBU SERIES FDU SERIES |
|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
FDU, FKC & FD 5050 SERIES |
COOL & HOT WATER |

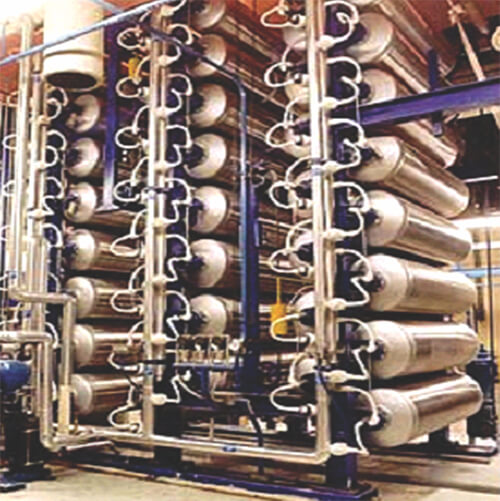

| WEAVING PREPARATORY MACHINES | FMU SERIES FDU SERIES & FJU SERIES |
STEAM, COOL & HOT WATER |
|
||

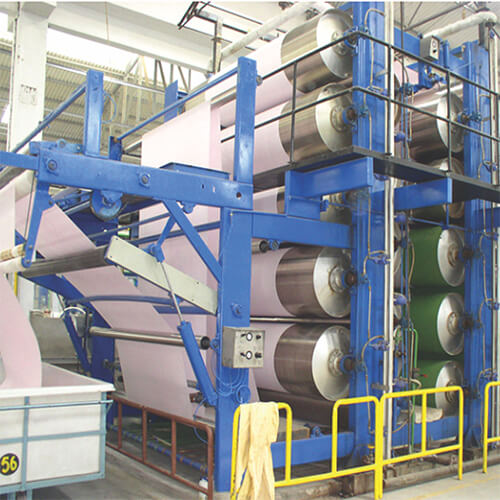

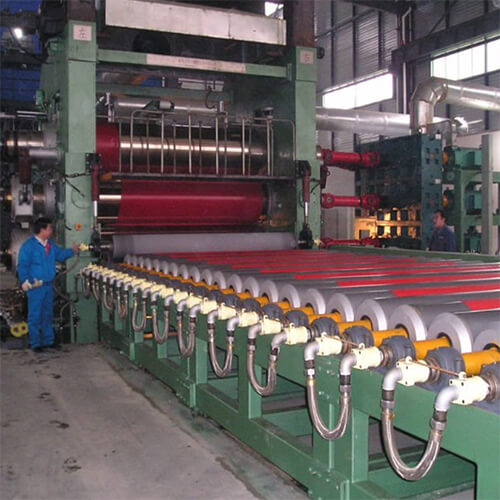

| DENIM PROCESSING | FJU SERIES FMU SERIES FDU SERIES FBU SERIES |
STEAM, HOT OIL, COOL & HOT WATER |
|
||
|
||
|
||
|
‘FOURWENTS’ ROTARY UNIONS & SPARES ARE IDEAL FOR NEW AS WELL AS EASY RETROFIT INSTALLATIONS

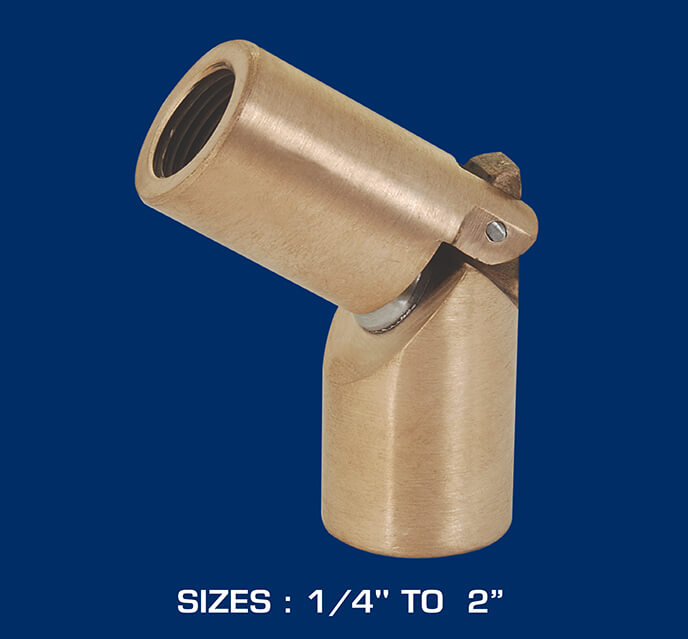

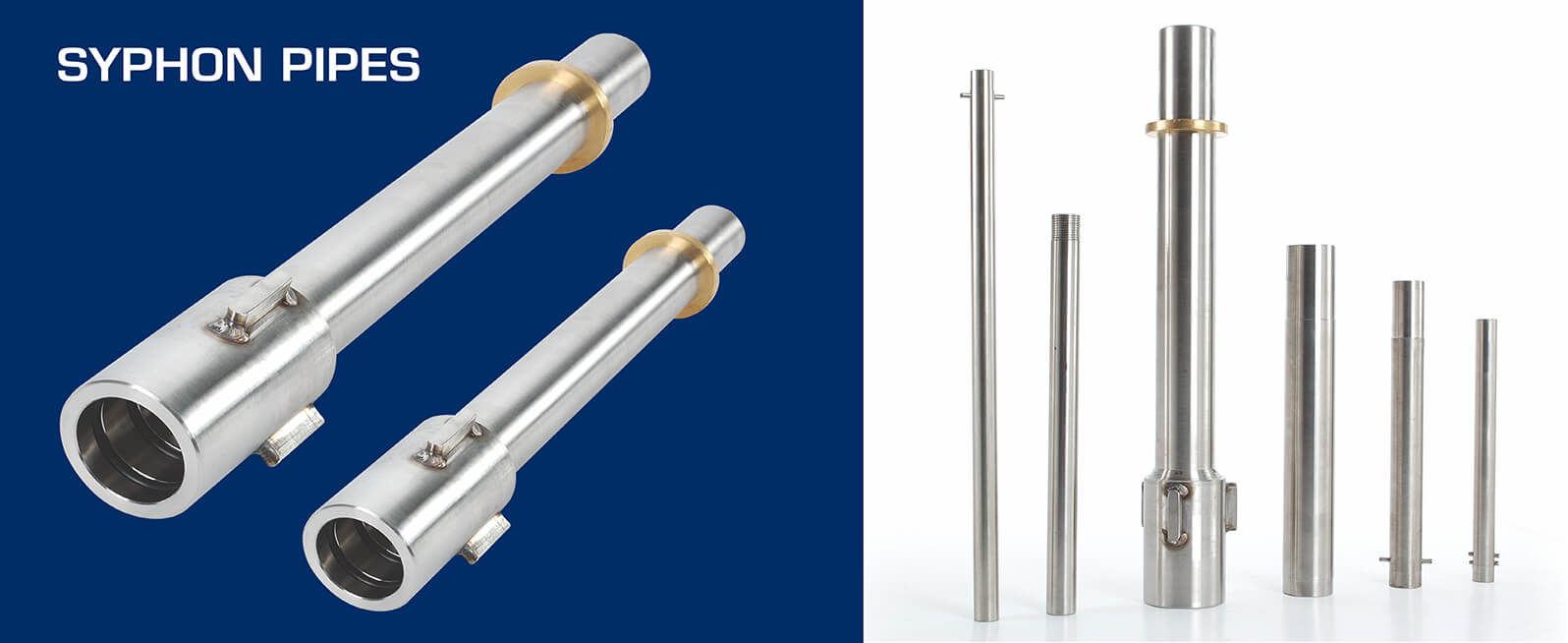

‘FOURWENTS’ SYPHON ELBOW IS SIMPLE, INEXPENSIVE ANSWER TO ALL THE TROUBLES OF THE ORDINARY CURVED, HARD-TO-HANDLE STATIONARY SYPHON PIPE. IT DOES THE JOB WITH TWO STRAIGHT PIECES OF PIPE, EASILY CUT AND ATTACHED, IT ASSURES PROPER LOCATION OF THE SYPHON AT ALL TIMES. IT IS HINGED, SO IT CAN BE INSERTED OR WITHDRAWN RIGHT THROUGH THE JOINT AND CLOSES TO A LEAK-TIGHT BY ITS OWN WEIGHT INSIDE THE ROLL. THE SYPHON ELBOW IS A PERFECT TEAM, MADE FOR ‘FOURWENTS’ JOINT FITTED WITH THE SPECIALLY ASSEMBLY PLATE, WHICH HOLD INTERNAL PARTITION WHEN THE HEAD IS REMOVED, THE SYPHON CAN BE INSERTED OR WITHDRAWN WITHOUT DISTURBING THE JOINT PROPER.
THE ‘FOURWENTS’ SYPHON ELBOW IS MADE OF BRASS, G.M. OR BRONZE WITH A STAINLESS STEEL VALVE INSERT AND AVAILABLE IN 1/4”, 3/8”, ½”, 3/4”, 1”, 1½” & 2” SIZES.

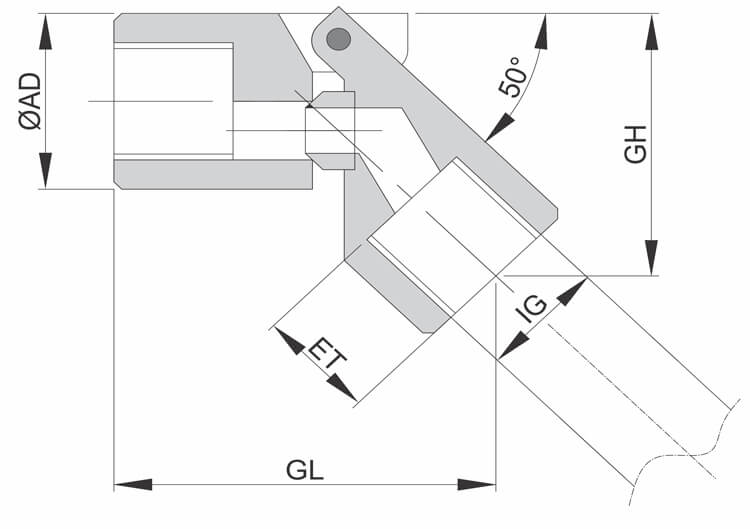

TOGGLE JOINTS FACILITATE THE INSTALLATION OF SYPHON PIPES IN STEAM HEATED ROLLERS, ESPECIALLY IN CASE OF LONG, NARROW TRUNNIONS. SEALS WHEN BENT. TEMPERATURE MAX. 160 °C
IG |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
G1½ |
G2 |
|---|---|---|---|---|---|---|---|
| Ø AD | 22 | 25 | 30 | 36 | 45 | 60 | 80 |
| ET | 12 | 15 | 18 | 20 | 22 | 30 | 35 |
| GL | 42,5 | 56 | 63 | 70 | 74 | 108 | 138 |
| GH | 31 | 37,5 | 45 | 50 | 57.5 | 81 | 104 |

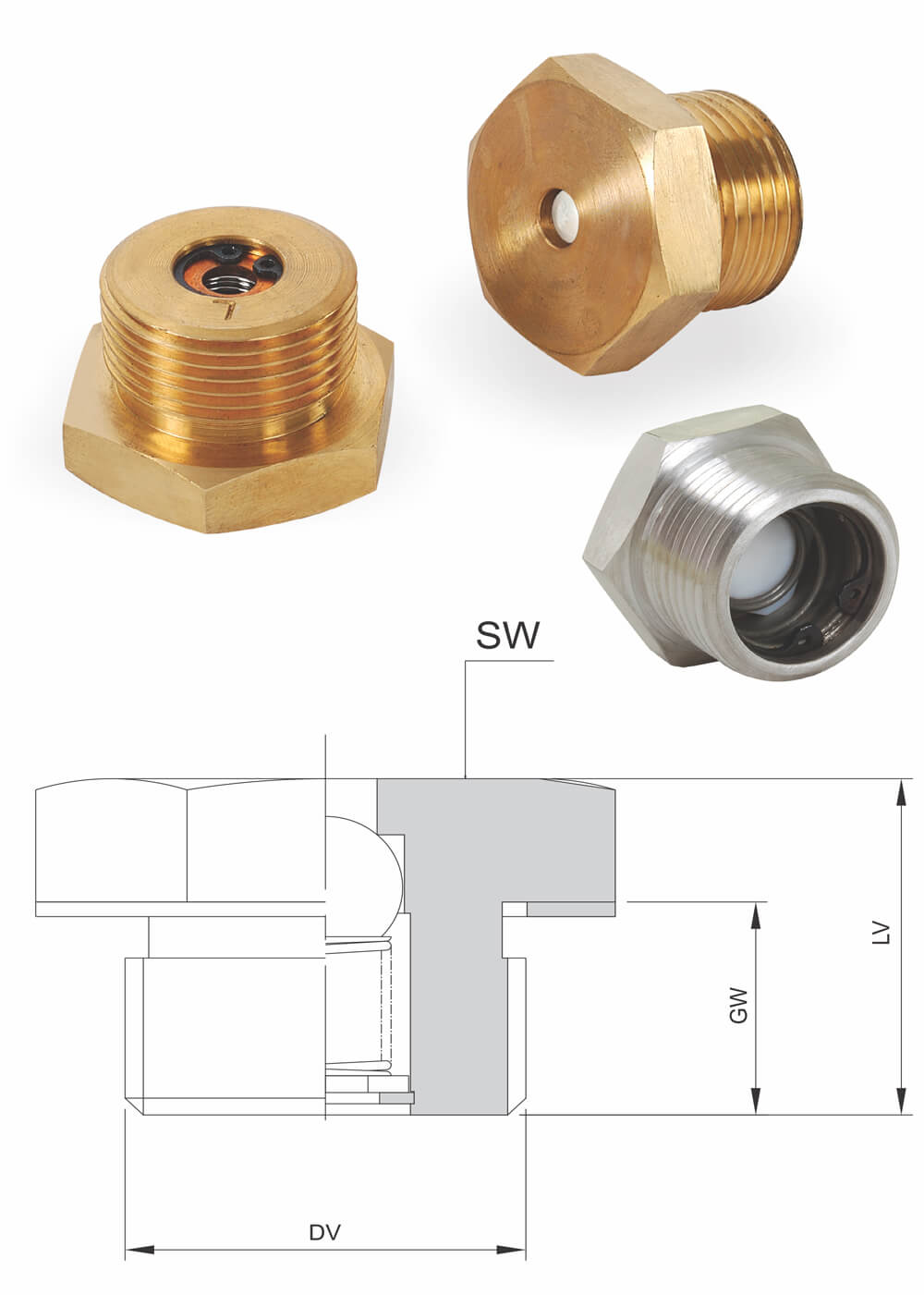

‘FOURWENTS’ VACUUM BREAKERS PROVIDE A SIMPLE, DEPENDABLE WAY TO RELIEVE ANY UNWANTED VACUUM CONDITION WHICH MAY DEVELOP IN A CLOSED VESSEL OR PIPELINE. THEY CAN BE USED TO PREVENT CONTAMINATION FROM BACK SYPHON AGE IN FLUID HANDLING SYSTEMS AND TO PROTECT EQUIPMENT AGAINST COLLAPSE OR IMPLOSION. THEY COMBINE TIGHT CLOSING WITH INSTANT RESPONSE, PROVIDE LARGE AIR VENTING CAPACITY; ARE DESIGNED FOR EASY INSTALLATION AND LONG SERVICE LIFE. THEY ARE AVAILABLE WITH PLAIN OUTLET AS WELL AS WITH OUTLET THREADED FOR PIPEWAY.
‘FOURWENTS’ VACUUM BREAKERS MEANS: POSITIVE CLOSING - LOW BREAKWAY QUIET , TROUBLE - FREE OPERATION, EASILY INSTALLED, EASILY MAINTAINED CAPABLE FOR USE WITH PRESSURES UPTO 300 PSI & TEMPERATURES TO 365° F.
DV |
G1/2 |
G1 |
|---|---|---|
| LV | 30 | 30 |
| GW | 19 | 22 |
| SW | 30 | 41 |

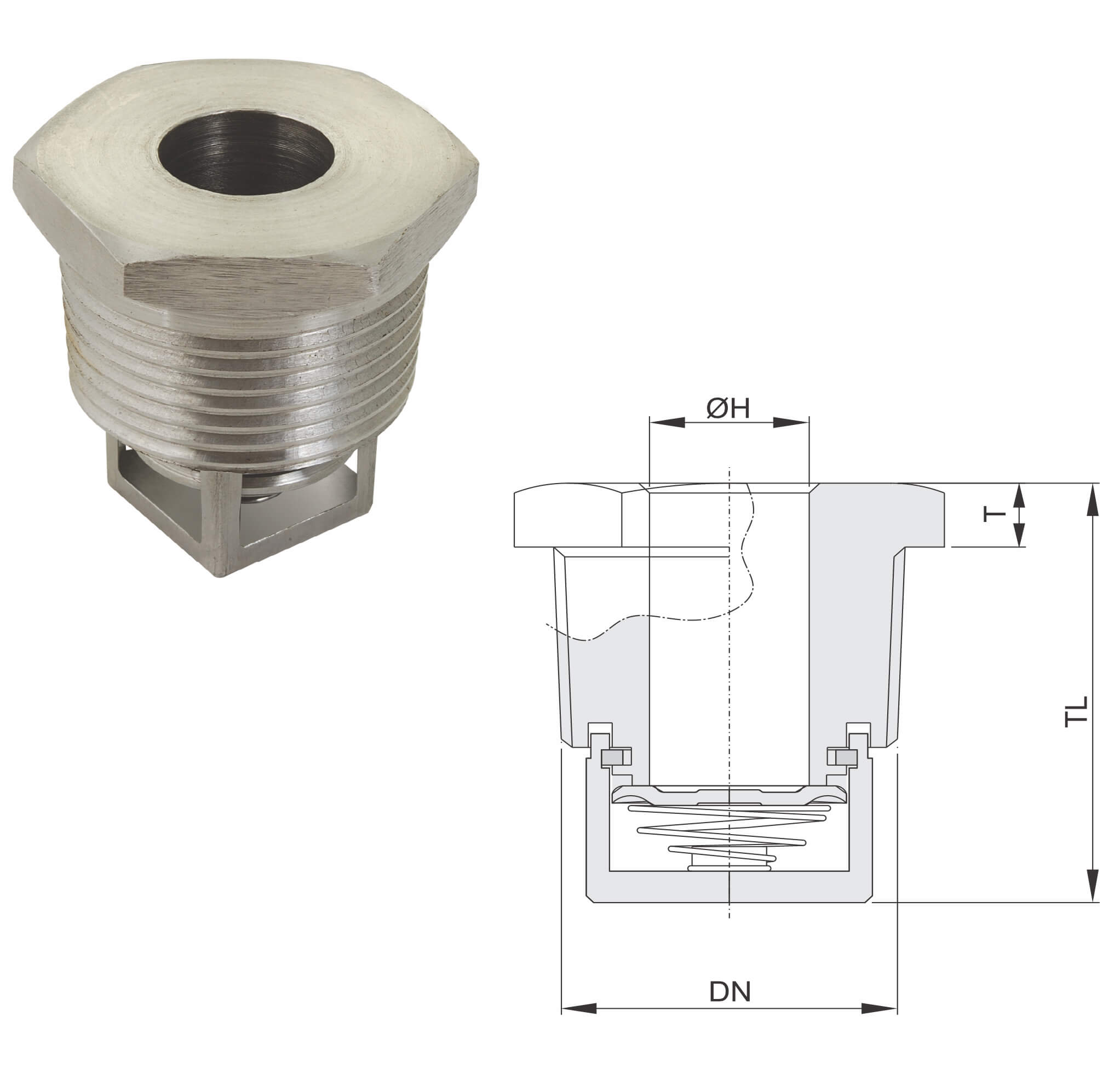

VACUUM VALVES PROTECT STEAM-HEATED ROLLERS AGAINST DAMAGE THROUGH LOW PRESSURE. THE VALVES ARE AVAILABLE SEPARATELY OR BUILT-IN (DESIGN 3) OPENS AT 0.3 BAR DIFFERENTIAL PRESSURE. TEMPERATURE MAX. 160 °C
DN |
1" NPT |
1" BSP |
|---|---|---|
| TL | 42.7 | 42.7 |
| T | 6.5 | 6.5 |
| Ø H | Ø 15 | Ø 15 |
| A/F | 36 | 36 |

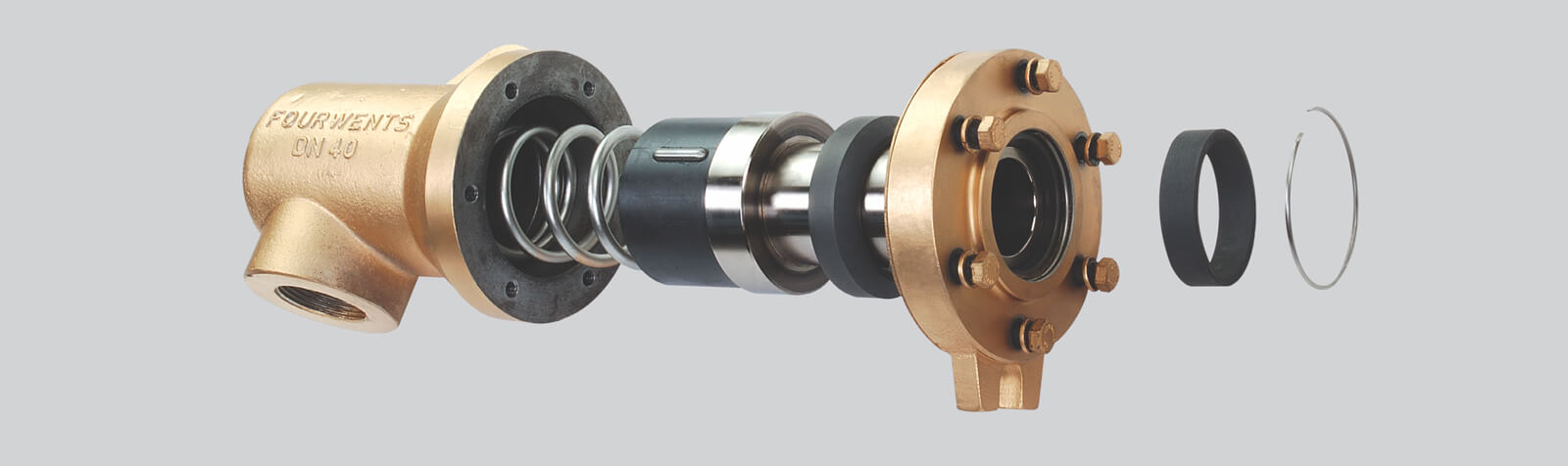

IN THE MAJORITY OF DESIGNS IN COMMON USE, THIS IS ACHIEVED THROUGH THE FACT THAT AT LEAST ONE OF THE TWO CARBON SEALING RINGS IN A FEEDER HEAD SEAL HAS A CONVEX OR CONCAVE SEALING FACE. THE FEEDER HEAD SEALS ARE OFTEN ALSO EQUIPPED WITH CARBON BEARINGS, WHICH ARE OFTEN RUN DRY. IN STEAM HEADER SEALS, ONE OF THE TWO SEALING RINGS CAN SERVE AS A BEARING AT THE SAME TIME.
