Complete solution from one source!

THE MOST RELIABLE & ADVANCED SOLUTIONS TO MEET
DIFFICULT PROCESS PIPING SYSTEMS THAT REQUIRE
PRECISE SEALING IN VARIOUS CRITICAL SERVICE APPLICATIONS.

‘FOURWENTS’ PIPE CONNECTORS DELIVERS BEST OF THE BEST
PERFORMANCE, EVEN UNDER EXTREME CONDITIONS IN
VARIOUS SERVICES LIKE...

  • PROCESS PIPING
  • NOZZLES & CLOSURES
  • USE IN CORROSIVE, EROSIVE, CYCLIC APPLICATIONS
  • AVAILABLE IN 1/2" THROUGH 24" IN A WIDE RANGE OF MATERIAL
  • MANIFOLDS
  • VALVES
  • PRESSURE VESSELS
  • HIGH PRESSURE, HIGH-TEMPERATURE APPLICATIONS
  • THE “FOURWENTS” GOLDEN-LOCK CLAMP CONNECTORS/ CLAMP/HUB CONNECTORS / JOINTS / PIPING CONNECTING SYSTEMS
  • PIPING ENGINEERING COMPONENTS & PRODUCTS
  • CLAMP CONNECTOR IS A COMPACT MECHANICAL JOINT CONSISTING FOR BASIC ELEMENTS: HUBS, SEALINGS, CLAMPS,& BOLTING
  • CLAMP JOINT CONNECTORS ARE AVAILABLE FROM STANDARD SIZES FROM 1/2" TO 24" IN A WIDE RANGE OF MATERIAL
  • FOURWENTS CLAMP CONNECTORS, REDUCE INSTALLATION TIME WITH QUICK & EASY ASSEMBLY ELIMINATE FUGITIVE EMISSIONS REDUCE MAINTENANCE COSTS & SPARE-PARTS ALTERNATIVE TO CONVENTIONAL FLANGES TO MEET YOUR CRITICAL SERVICE PIPING & VESSEL CONNECTION REQUIREMENTS

'THE GROUP FOURWENTS' DESIGNED AND MANUFACTURED

Reliable, Innovative and Sustainable advanced Solutions
for Difficult Process piping mainly in...

  • OIL & GAS
  • ENERGY PRODUCERS (THERMAL POWER PLANT)
  • SOLAR ENERGY
  • RENEWABLE & ALTERNATIVE
  • WIND POWER
  • CHEMICAL PROCESSING AND ALL OTHER PROCESS INDUSTRIES.

FOR USE IN PIPING SYSTEMS TO DELIVER OUTSTANDING PERFORMANCE
EVEN UNDER EXTREME CONDITIONS.

THE ‘GOLDEN LOCK’ CONNECTOR APPLICATIONS

THE GOLDEN LOCK CONNECTOR'S SIMPLICITY, SEALING EFFICIENCY, AND AFFORDABILITY
MAKE IT SUITABLE FOR A VARIETY OF INDUSTRIES AND APPLICATIONS.

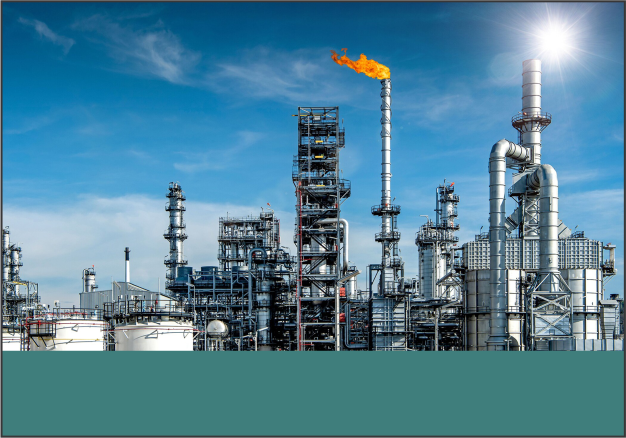

OIL & GAS INDUSTRIES

Onshore & offshore wellheads, tees and ells, manifolds, chokes, valve ends, compressors, general piping, loading risers, and pipelines.

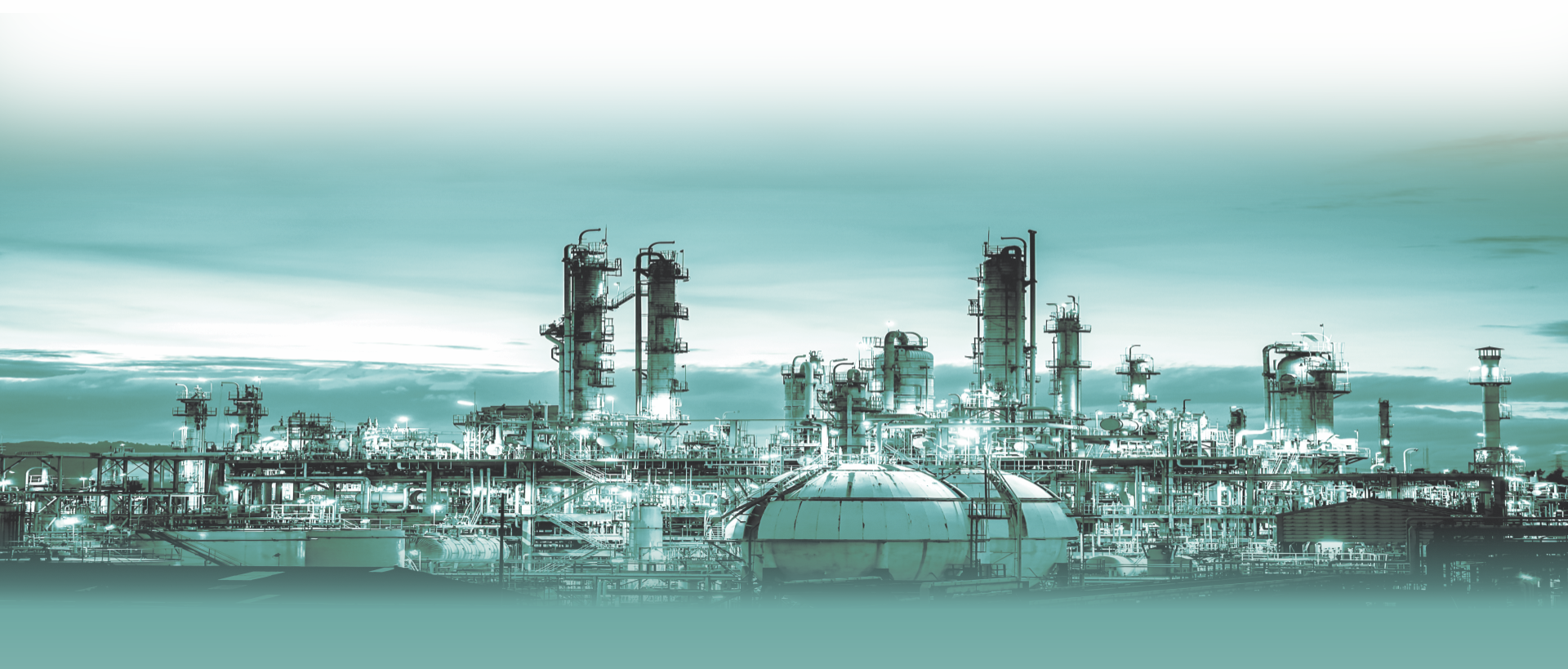

PETROCHEMICAL

Reactor vessel components include nozzles, closures, heads, tees, ells, manifolds, and valve ends. Piping & valves are used in petroleum rening and chemi cal processing facilities.

MARINE

Subsea piping and riser systems, FPSO (Floating Production, Storage, and Offloading) vessels, and tanker loading and unloading facilities.

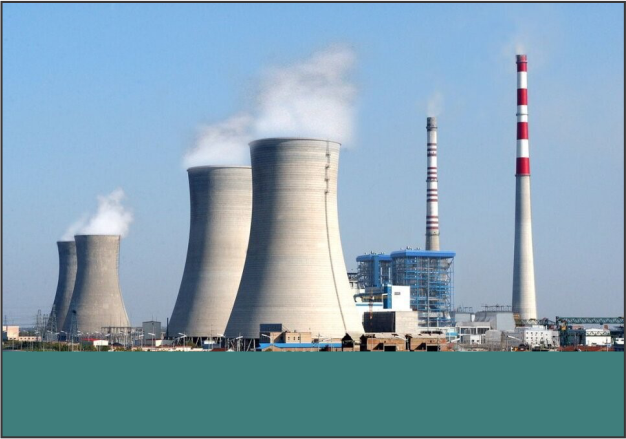

POWER INDUSTRY

Steam lines, Pump inlet / outlet lines, General Piping / Valve ends and chemical clean out closures.

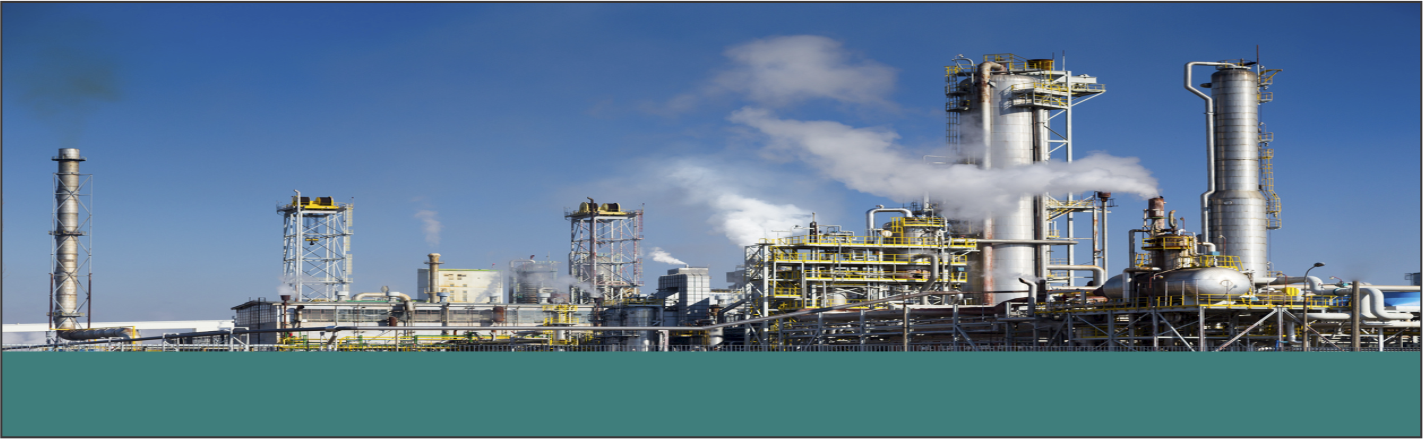

SYNTHETIC FUELS, COAL GASIFICATION & COAL LIQUIFACTION

This section covers vessel closures, reactors, general piping, and valve ends.

FOOD PROCESSING

Sanitary and general pipeline connectors, vessel closures, and valve ends..

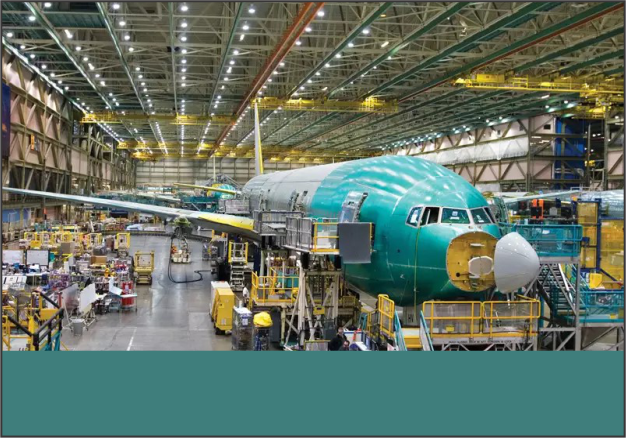

AEROSPACE

Rocket test stands, fuel lines, hydraulic and pneumatic piping systems.

ENVIRONMENTAL

Hazardous waste disposal and fugitive emissions control.

CLAMP/HUB CONNECTORS/JOINTS
PIPING CONNECTING SYSTEMS

  • THE MOST RELIABLE & ADVANCED SOLUTIONS TO MEET DIFFICULT PROCESS PIPING SYSTEMS THAT REQUIRE PRECISE SEALING IN VARIOUS CRITICAL SERVICE APPLICATIONS.
  • ‘FOURWENTS’ PIPE CONNECTORS DELIVERS BEST OF THE BEST PERFORMANCE, EVEN UNDER EXTREME CONDITIONS IN VARIOUS SERVICES LIKE...
  • PROCESS PIPING
  • MANIFOLDS
  • VALVES
  • PRESSURE VESSELS
  • NOZZLES & CLOSURES
  • HIGH PRESSURE, HIGH-TEMPERATURE APPLICATIONS
  • USE IN CORROSIVE, EROSIVE, CYCLIC APPLICATIONS.
  • AVAILABLE IN 1/2" THROUGH 24" IN A WIDE RANGE OF MATERIAL.
  • PRESSURE CLASSES UP TO ASME 4500#
  • TEMPERATURES REACHING 1500°F

CLAMP JOINT
ASSEMBLY

‘GOLDEN LOCK’

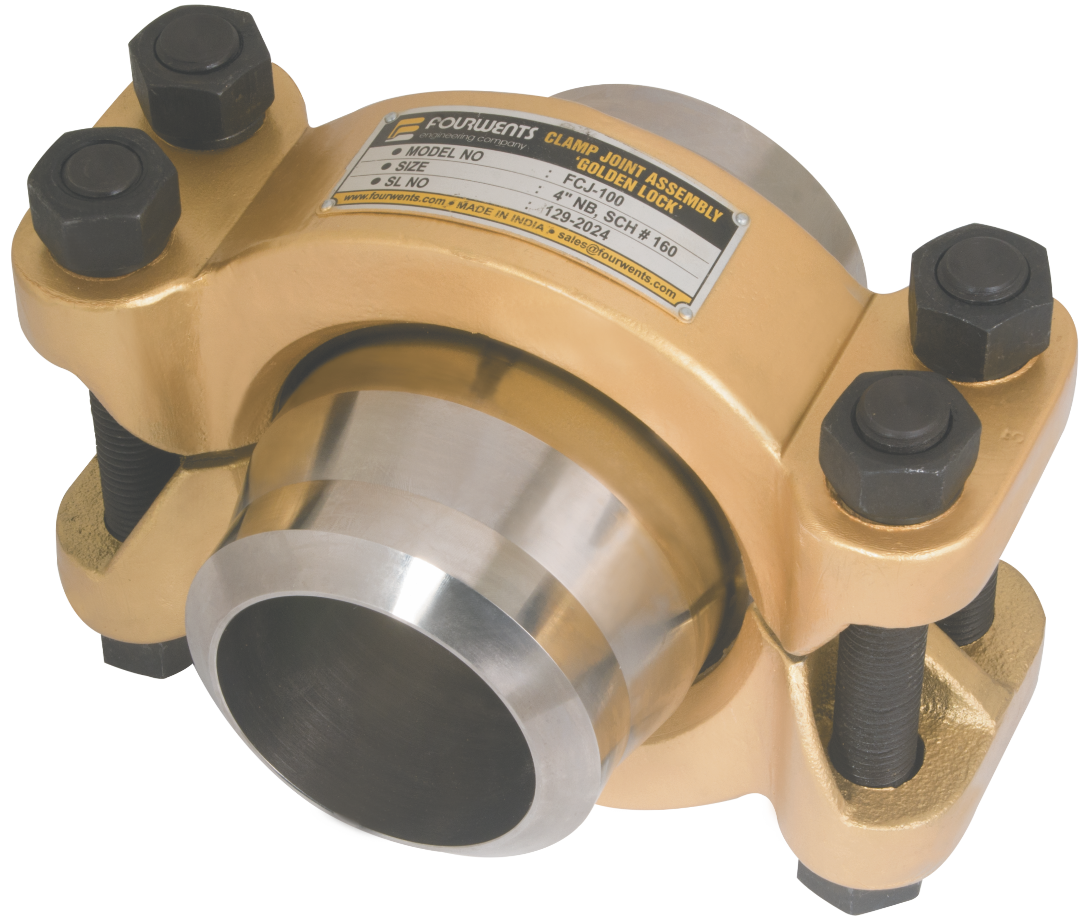

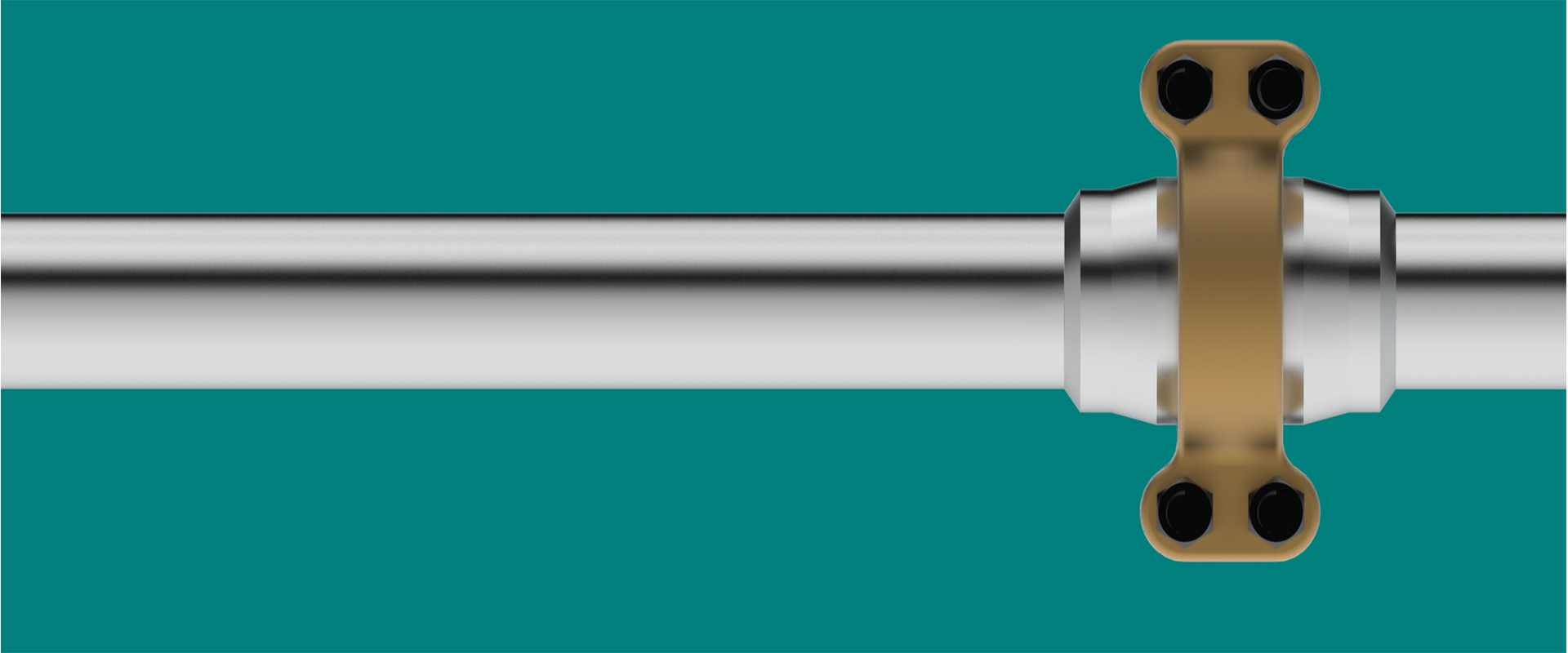

THE “FOURWENTS” GOLDEN-LOCK CLAMP CONNECTOR
IS A RELIABLE AND SMALL 4-BOLT FITTING THAT WAS CREATED AS A
HIGH-PERFORMANCE SUBSTITUTE FOR FLANGES.

  • For use in piping systems needing high integrity seals in applications involving corrosive, erosive, high temperature, high pressure, and cyclic environments, the “FOURWENTS” Golden-Lock clamp connection is a dependable, simple-toassemble, metal-to-metal sealed connector. It is designed to work with compressors, pumps, manifolds, valves, pressure vessel nozzles, and closures.
  • The clamp joint is constructed using two clamps, two hubs, one seal ring, four studs, and eight nuts.
  • The hub sealing surface is interfaced with a reusable, zero leakage seal ring to provide high integrity and a strong seal. In order to provide a self-energized seal during operation, the joint confguration makes sure that the seal ring is elastically loaded during assembly.
  • To at any application, “Fourwents” Oil & Gas Technologies will custom create and optimise unique Golden-Lock products.

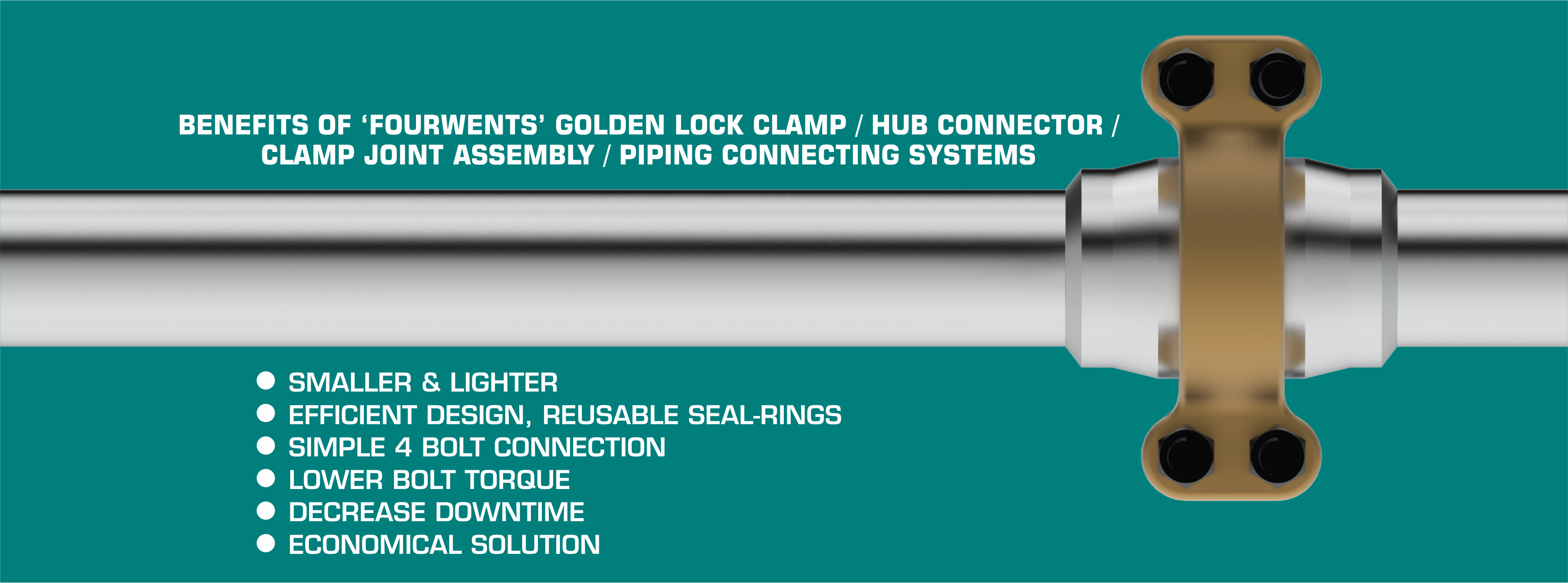

BENEFITS OF ‘FOURWENTS’ GOLDEN LOCK CLAMP / HUB CONNECTOR / CLAMP JOINT ASSEMBLY / PIPING CONNECTING SYSTEMS

  • SMALLER & LIGHTER
  • EFFICIENT DESIGN, REUSABLE SEAL-RINGS
  • SIMPLE 4 BOLT CONNECTION
  • LOWER BOLT TORQUE
  • DECREASE DOWNTIME
  • ECONOMICAL SOLUTION

HOW THE WORKS ‘FOURWENTS’ ‘GOLDEN LOCK’ CLAMP CONNECTOR.

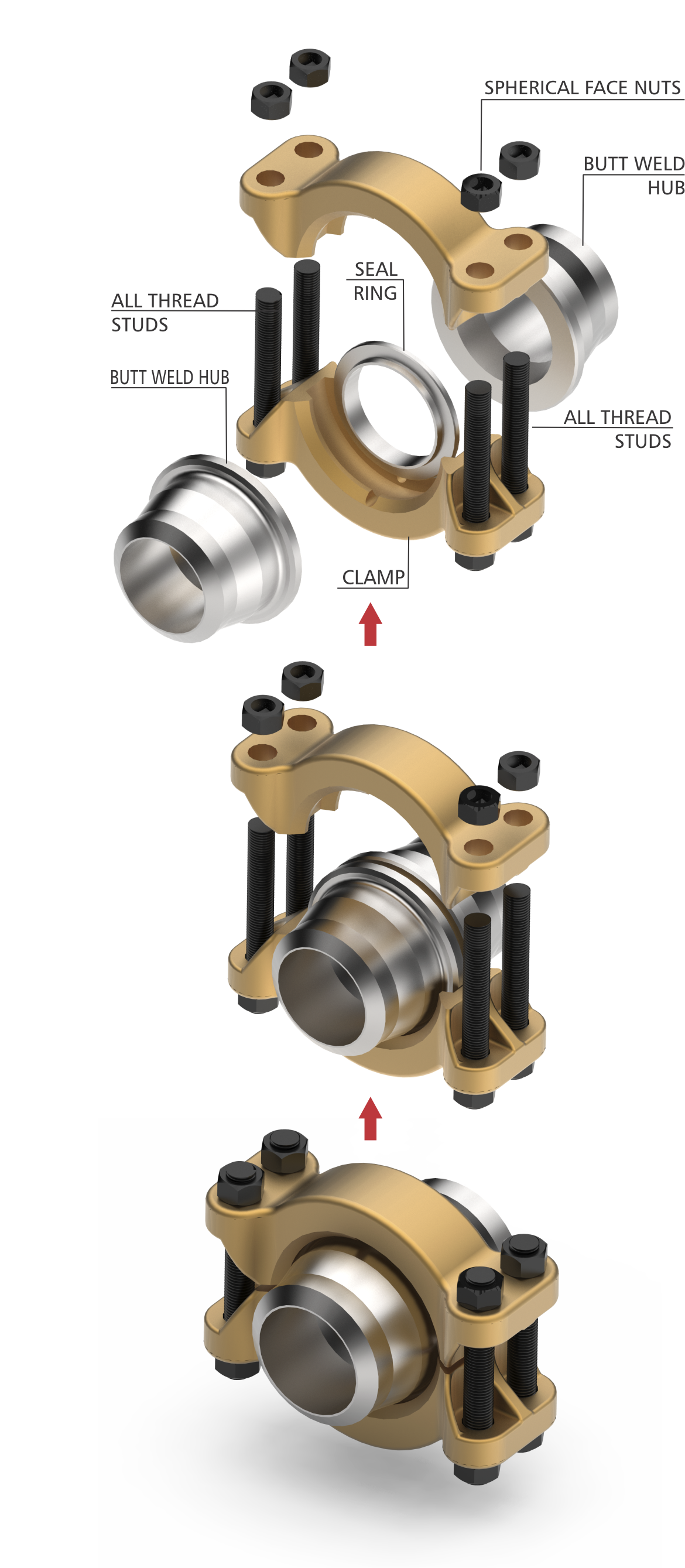

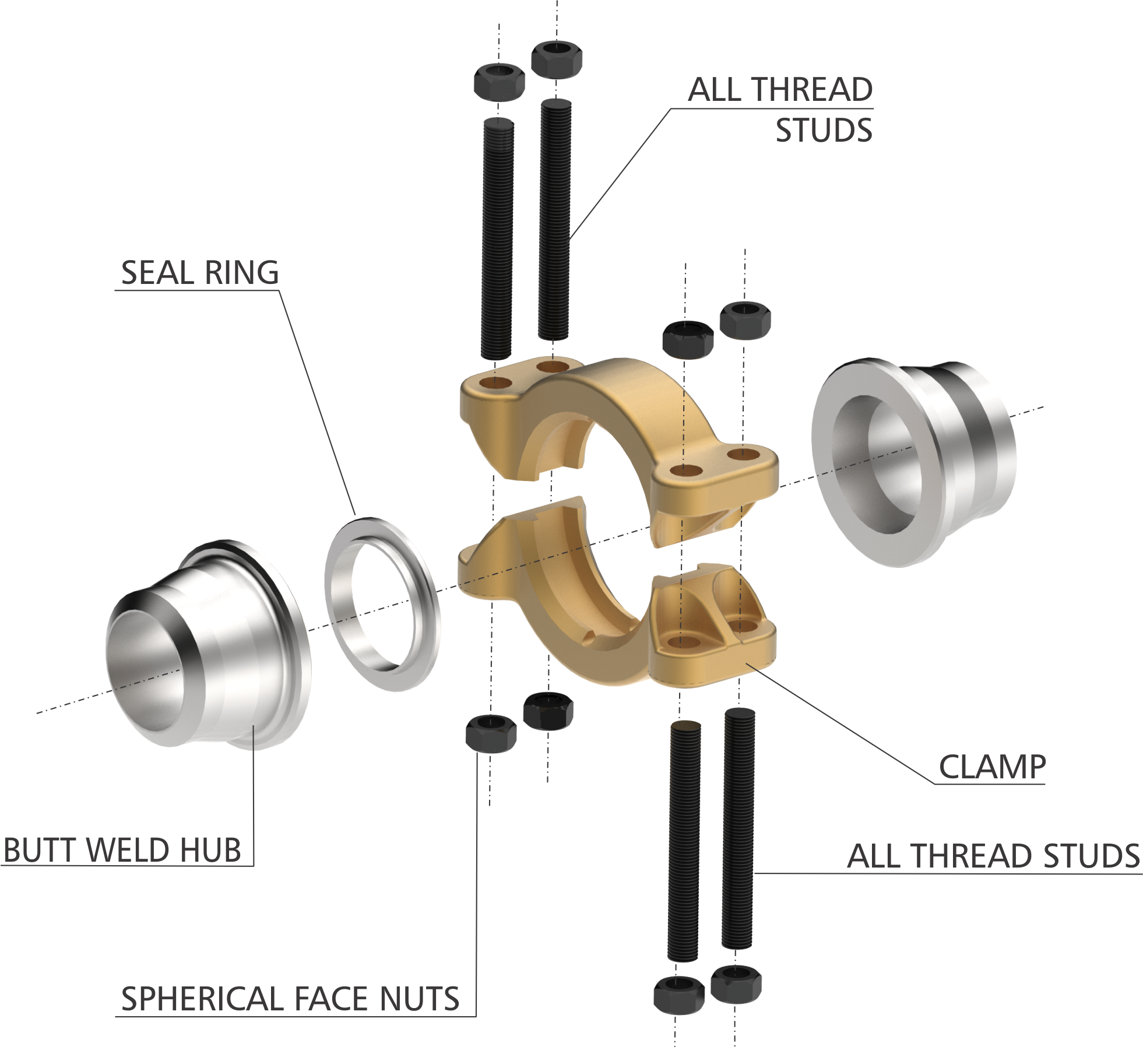

Fourwents GOLDEN LOCK is a fourbolt pipe clamp connection with two butt weld hubs welded to connecting pipes, two clamps (180º segments) spun around the hubs, and a sealing ring that its between the hubs.

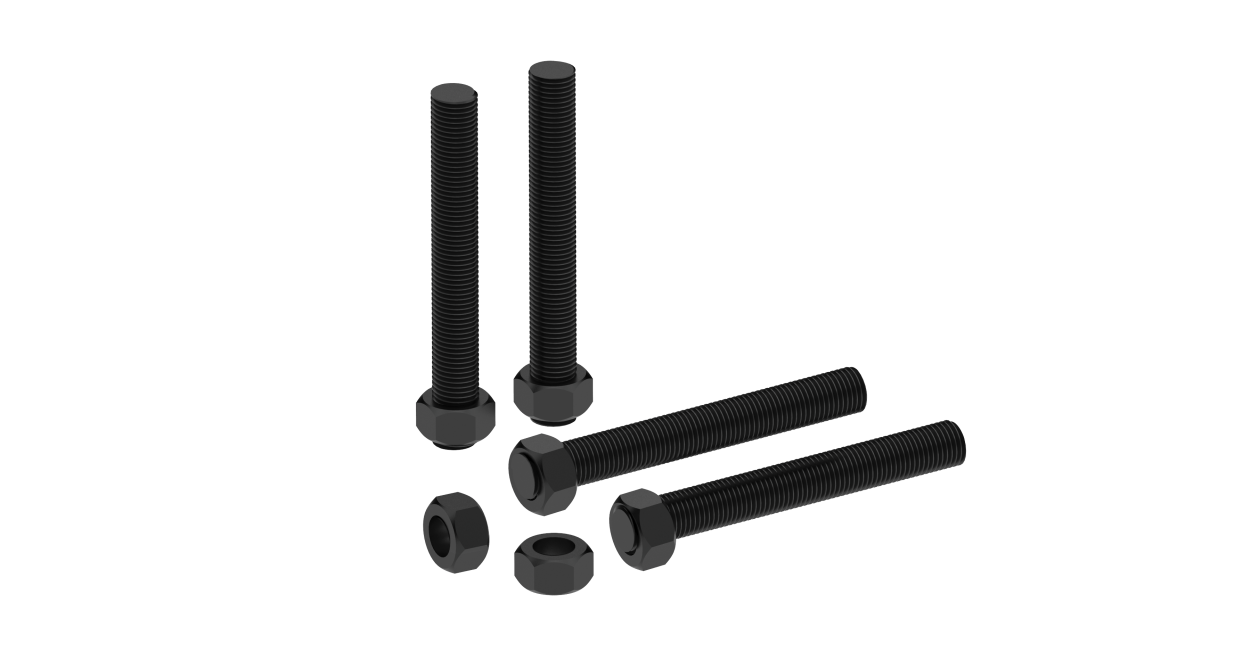

The bolt set includes four studs and four spherically facing nuts that secure the clamps over the hubs and engage the assembly.

Fourwents ‘GOLDEN LOCK’ is a unique pipe clamp connector with quick connect and disconnect capabilities. It is suited for applications requiring space, weight, and joint integrity. GOLDEN LOCK outperforms ANSI and DIN ranges due to its greater characteristics.

The ‘GOLDEN LOCK’ pipe clamp connections are interchangeable with any other type connectors.

Fourwents ‘GOLDEN LOCK’ is compliant with ASME Section III, Class 1, 2, 3, 6, CSA Can 3 N285.0, and ASME Section VIII division 1 & 2.

FOURWENTS 'GOLDEN LOCK'
SAVES WEIGHT AND SPACE.

The ‘Golden Lock’ connector offers the chance to build lightweight, compact systems since it is substantially lighter and smaller than an equivalently rated ANSI or API ring joint ange connector. The clamp fully rotates around the hub, making it simple for position the pipes and hookups. SHORTER LENGTH, SMALLER DIAMETER, NO BOLT HOLES TO LINE UP.

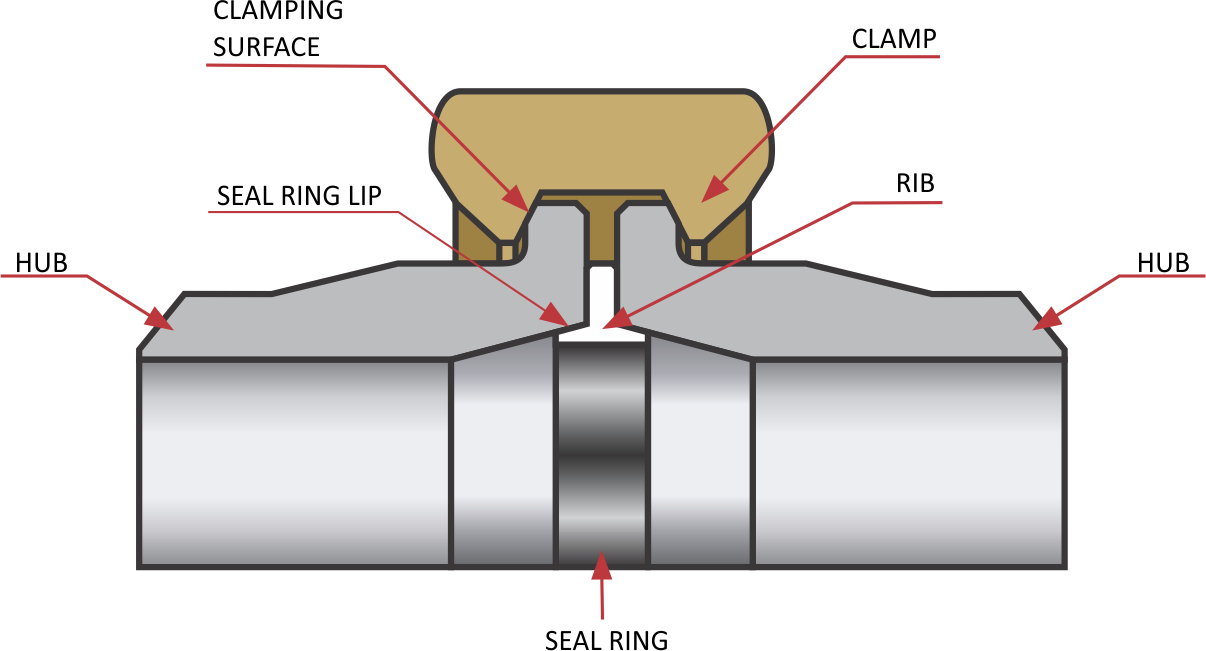

THE ‘FOURWENTS’ METAL-TO-METAL ‘CLAMP CONNECTOR SEALS’

The rib of the seal ring is clamped between the hub faces. The lips of the seal ring engage the inner hub surface in an interference t, Which deects the lips to form a seal.

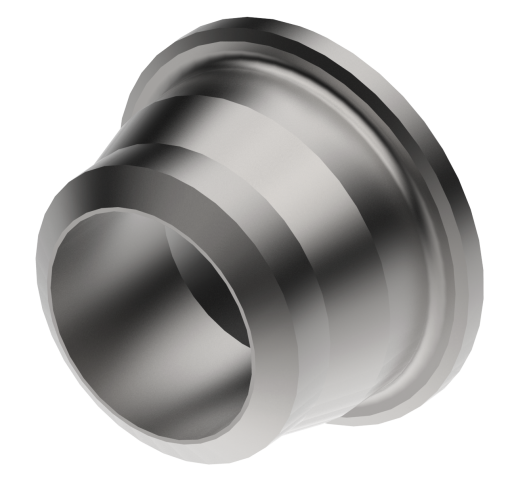

TWO HUBS

The clamp secures the two hubs against the seal ring ribs. The clamp assembly draws the hubs together, causing the seal ring lips to deect against the hubs' inner sealing surfaces. This deection elastically loads the lip of the seal ring against the hub's inner sealing surface, resulting in a self-energized seal.

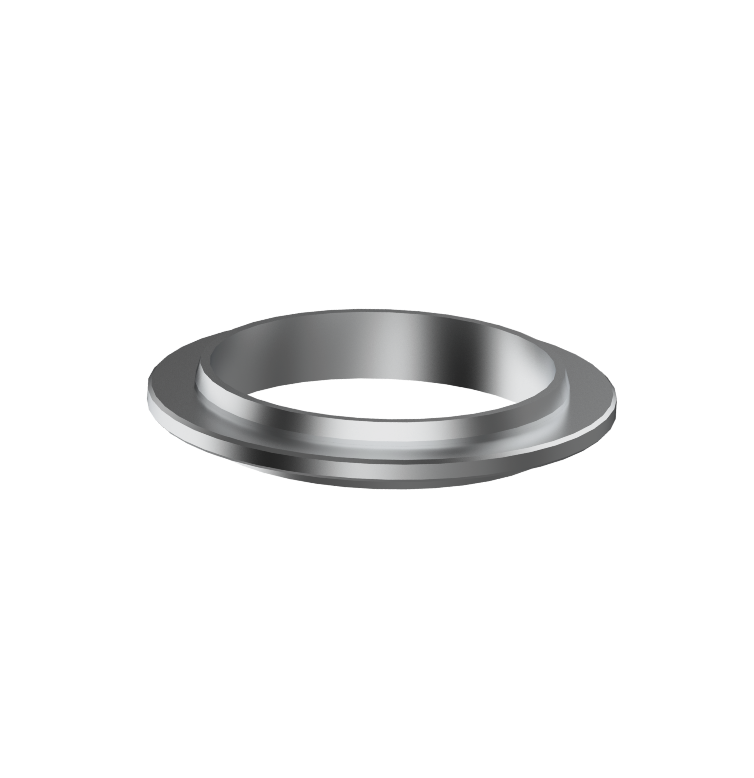

METAL SEAL RING

A seal ring's cross section is shaped like a "T". As the connection is created, the legs of the "T" form a rib that is supported by the hub faces. Two arms form a lip seal on the hub's inner surface, which serves as the sealing surface. Internal pressure helps to reinforce the seal.

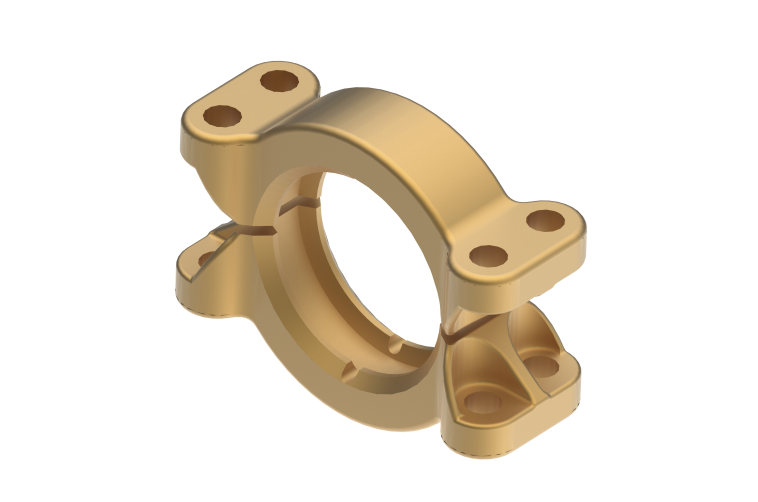

CLAMP ASSEMBLY

Designed for almost 360° clamping contact with the hubs. A relief notch in the clamp segments allows for uniform distribution of makeup forces.
There is no need for a certain orientation when installation.

THE ADVANTAGES OF FOURWENTS 'GOLDEN LOCK'
PIPE CLAMP CONNECTORS.

  • EASIER TO CONSTRUCT AND INSTALL BECAUSE THERE ARE NO BOLT HOLES TO LINE UP.
  • INSTEAD OF UP TO 24 BOLTS ON AN ANSI FLANGE, THERE ARE JUST 4 TO TIGHTEN.
  • TURNING THE GOLDEN LOCK AROUND THE HUB MAKES IT SIMPLE TO ALIGN AND TIGHTEN THE BOLTS.
  • REDUCED MAINTENANCE DOWNTIME IS ACHIEVED WITH FASTER AND SIMPLER MAKEUP AND BREAKOUT PROCESSES.
  • REDUCED BOLT TORQUE: NORMALLY 50% LESS THAN A RING JOINT FLANGE'S TORQUE.
  • BOLT OVER-TENSION HAS NO EFFECT ON SEALING INTEGRITY.
  • SIGNIFICANTLY SMALLER AND UP TO 75% LIGHTER THAN ANSI FLANGES.
  • 40% SHORTER CONNECTION LENGTH AND 25% SMALLER CLAMP DIAMETER.
  • THE GOLDEN LOCK MAY BE INSTALLED AND REMOVED IN THE SAME TIME IT TAKES TO CONNECT A SINGLE ANSI FLANGE.
  • ONCE IN SERVICE, BOLTS ARE USUALLY NOT REQUIRED TO BE RE-TIGHTENED.
  • ONE CLAMP SIZE WILL BE REQUIRED FOR EACH NOMINAL PIPE SIZE.
  • GREATER FLEXIBILITY IS PROVIDED BY REUSABLE SEAL RINGS FOR HYDRO-TESTING AND COMMISSIONING BEFORE SERVICE.

THE PIPE CAN WITHSTAND TENSION, BENDING AND COMPRESSION
WITH FOURWENTS 'GOLDEN LOCK' CONNECTORS.

The Forwents 'Golden Lock' connector operates better when constructed of the same material as the pipe and a majority of other components that may be connected.

The rib of the seal ring keeps the seal lip from being crushed by over-tightening. The rib serves as a positive stop during makeup, but it also distributes compressive and bending loads from one hub member to another. The rib bearing area is large enough to support the most severe loading that a piping system can sustain.

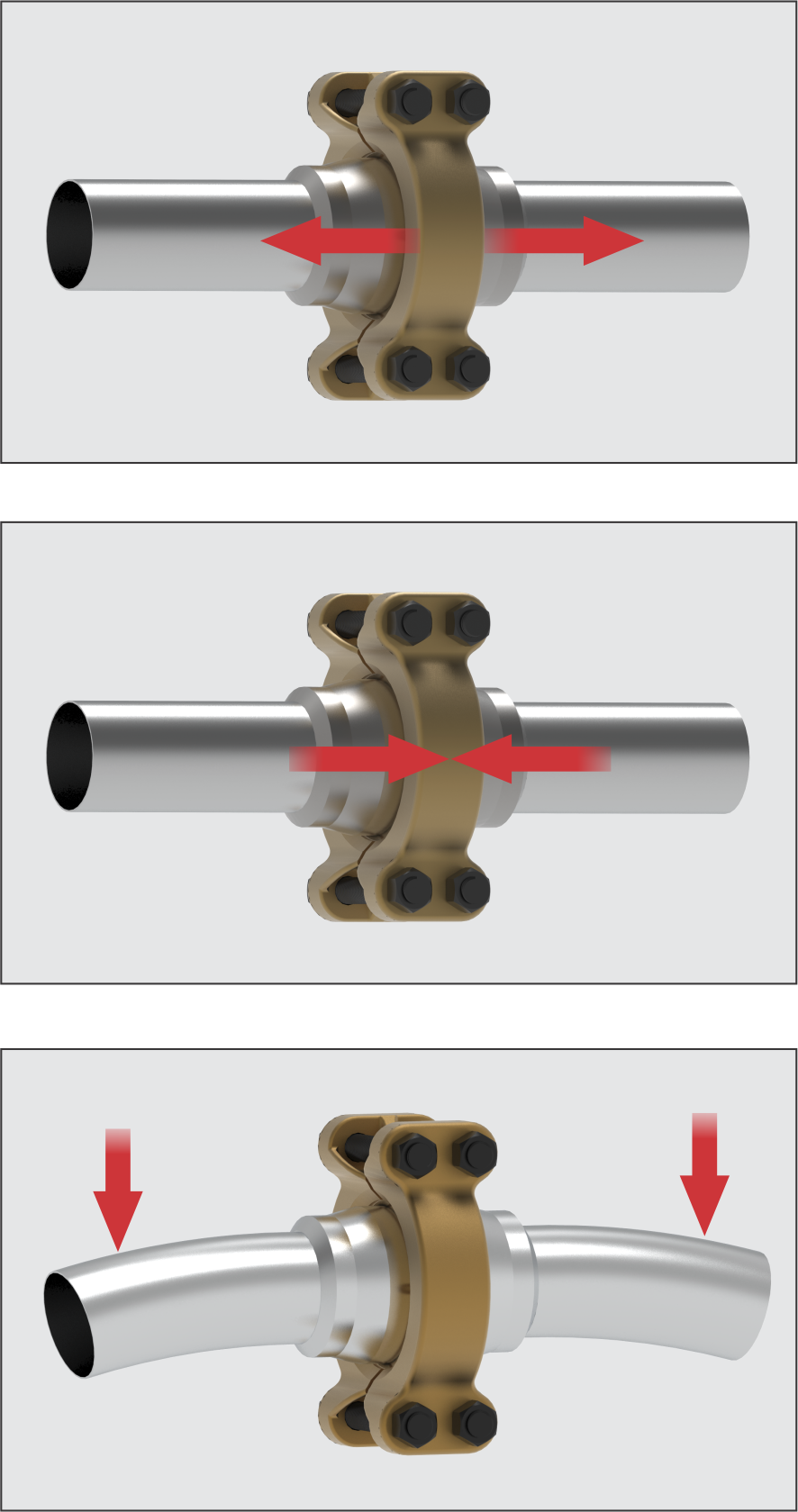

TENSION, COMPRESSION & BENDING

TENSION :

  • Supports higher tensile stresses than traditional ANSI ranges.
  • Can resist higher strain loads than the pipe itself.
  • In destructive tests, the pipe can be loaded to failure without leaking the Golden Lock connector.

COMPRESSION :

  • In conventional piping applications, the ‘Golden Lock’ connector or seal ring cannot be overloaded during compression.
  • For high compressive loads, the connector's maximum load is dened by the pipe limit.

BENDING:

  • Independent tests have demonstrated that ‘Golden Lock’ connectors can endure high bending strains without leaking or loosening.

SERVICE EXTREMES

‘FOURWENTS’ ‘GOLDEN LOCK’ CONNECTORS CAN EXPERIENCE VIBRATION, HEAT, COLD, AND THERMAL SHOCK DURING HEAVYDUTY USE. GOLDEN LOCK CONNECTORS REGULARLY WITHSTAND HARSH CONDITIONS WITHOUT REQUIRING ROUTINE MAINTENANCE. SPECIAL DESIGNS ENABLE MAINTENANCE-FREE SERVICE EVEN IN THE HARSH CONDITIONS SHOWN IN THE TABLE.

Examples of ‘Fourwents Golden lock’connector applications in extreme service circumstances.

  • Vibration: 80 to 200 cycles per second under 6,600 PSI
  • High Temperature: Service experience to 1700° F.
  • Low Temperature: Routine liquified gas service including liquid hydrogen and nitrogen to -425° F.
  • Thermal Shock: Routine service with temperature changes up to 300° F. per hour.
  • Corrosion: Liquid sodium service at 1200° F
  • Zero Leak Rate: 10 atm eels Helium.

TO KNOW MORE... our Product Details
View Our Brochure

Cross Reference world wide

‘Fourwents’ Rotary unions are equivalent to fit against various brands of the world
