Complete solution from one source!

MULTI PASSAGE / MULTI PORT / MULTI CHANNEL ROTARY UNIONS FOR AIR, COOLANT, WATER, GASES, STEAM & OIL APPLICATIONS

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

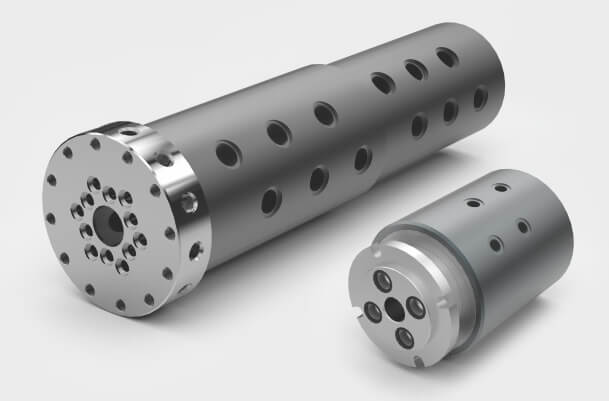

FDGA FDG - SERIES
FOR
GENERAL PURPOSE		 1/8", 1/4", 3/8", 1/2", 3/4", &1" 2, 3, 4,6, 8,10 & 12 7700 PSI VACUUM-28" HG 250 500

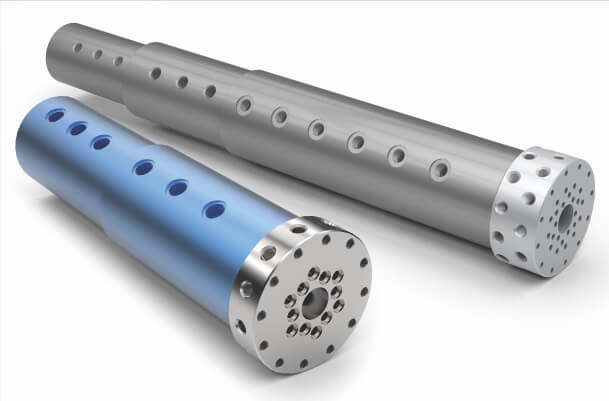

FDLC FDL - SERIES FOR LOW TORQUE SERVICE 1/8" & 3/8" 2, 4, 8, 12, & 24 600 PSI VACUUM-28" HG 250 500

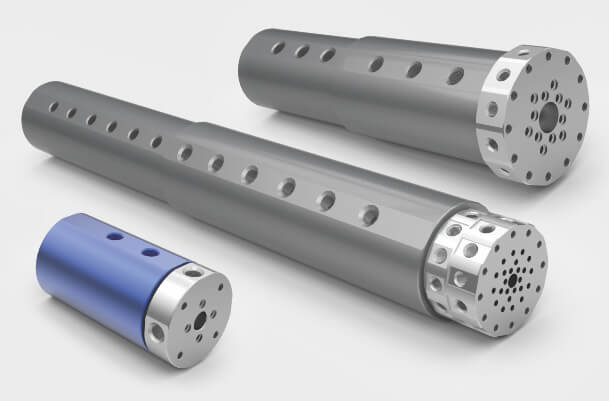

FDHC FDH - SERIES FOR HIGH PRESSURE UP TO 7500 PSI 1/8" 2, 4, 6, 8, 12 16 & 24 7500 PSI VACUUM-28" HG 250 300

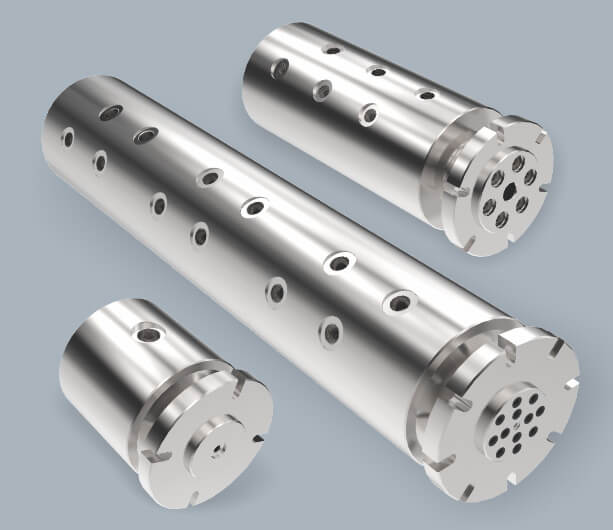

FDHSS FDHS - SERIES FOR HIGH PRESSURE UP TO 20,000 PSI ( STAINLESS STEEL CONSTRUCTION ) 9/16" (18UNF) & 3/4" (14NPS) 1, 3, 4, 6, 8, 12, & 16 20,000 PSI 250 50

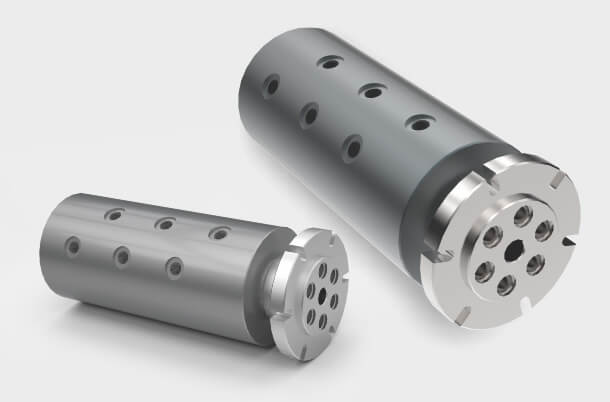

FDHVC FDHV - SERIES FOR HIGH VOLUME APPLICATIONS ( CORROSION RESISTANT ) 3/4", 1" 1-1/4" & 1-1/2" 3, 4, 6, 8 5,000 PSI VACUUM-28" HG 250 50

ROTARY UNIONS FOR AIR HYDRAULIC, COOLANT, WATER, VACUUM & GAS APPLICATIONS ( FDU-AHS SERIES )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

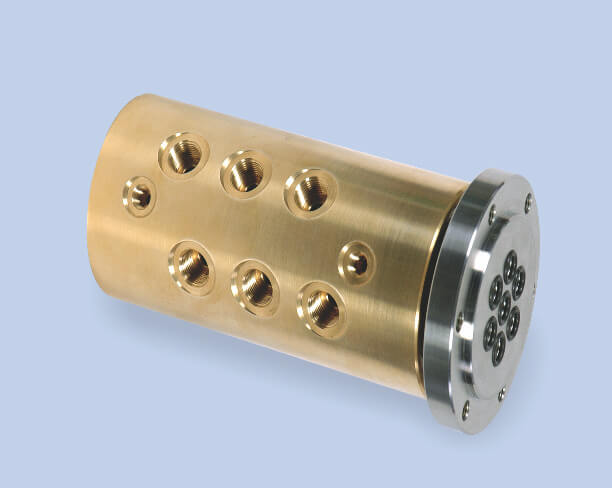

FMMP MULTI PASSAGE ROTARY UNIONS 1/4" TO 1" 2 TO 10 OIL-400 GAS-150 AIR-150 WATER-150 175 250

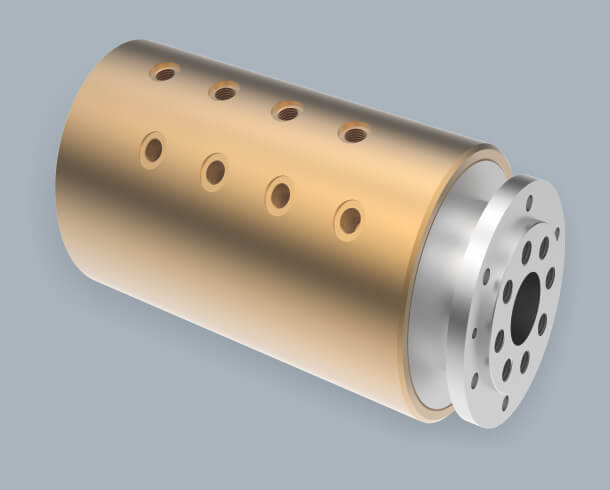

FDFM MULTI PASSAGE ROTARY UNIONS 1/4" TO 3/8" 8 AND 10 150 175 250

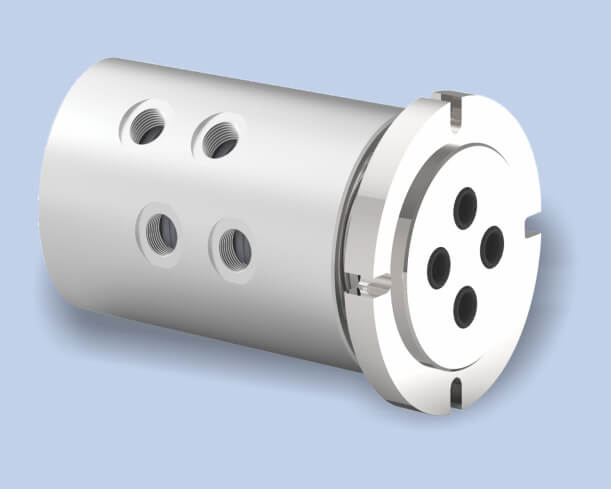

FDU 400 HIGH PRESSURE MULTI PORT ROTARY UNIONS 1/4" TO 1-1/4" 2 TO 8 5800 250 175

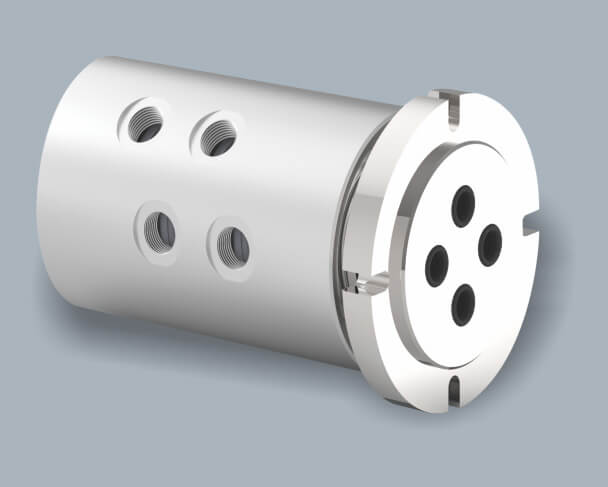

FDU 3000 HIGH SPEED MULTI PORT ROTARY UNIONS 1/8" TO 3/8 2 TO 4 175 250 3000
FDU FP 4000 MULTI PASSAGE ROTARY UNIONS 3/8" TO 1/2" 4 150 180 10 TO 250

ROTARY UNIONS FOR AIR HYDRAULIC, COOLANT, WATER, VACUUM & GAS APPLICATIONS ( FDU-AHS SERIES )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

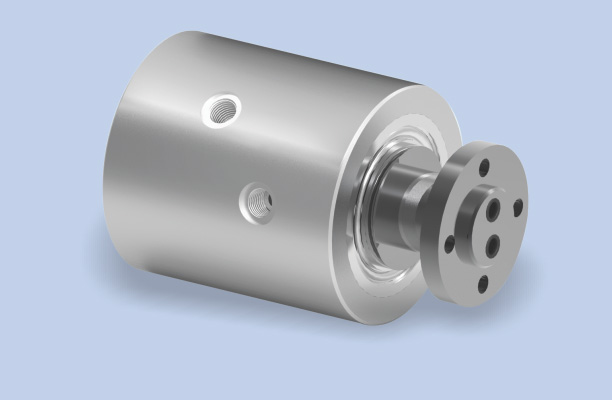

FMP 5171 MULTI PASSAGE HIGH PRESSURE ROTARY UNIONS 1/4" 1 TO 4 2900 140 3000

AROUND THE SHAFT & OVER THE SHAFT ROTARY UNIONS FOR AIR, WATER, VACUUM & OIL APPLICATIONS ( ATS-OTS SERIES )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

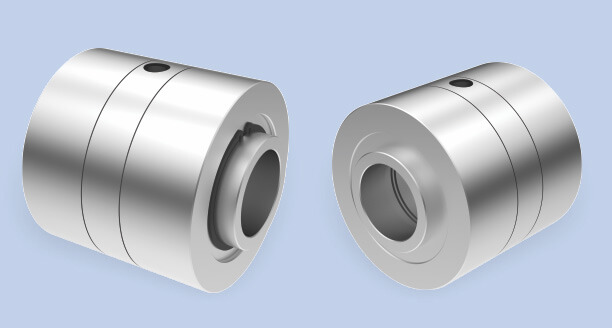

FD-OTS OVER THE SHAFT ROTARY UNIONS 1" TO 16" 2 150 220 1000

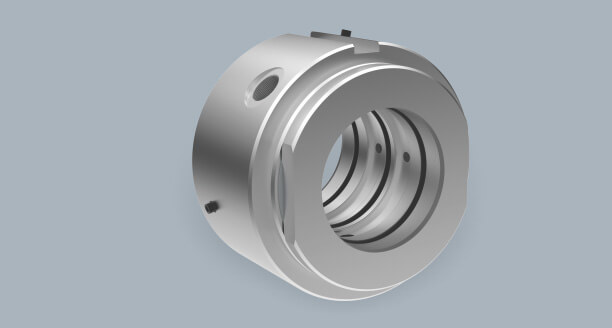

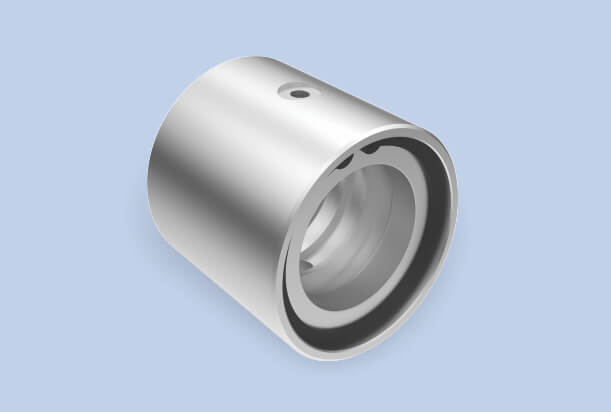

FD-ATS AROUND THE SHAFT DUO-FLOW ROTARY UNIONS 3/4" 2 150 250 10
FD-ATS AROUND THE SHAFT HIGH SPEED, LOW PRESSURE 1/4" 2 175 250 3000
AROUND THE SHAFT HIGH PRESSURE, LOW SPEED 1/2" 5800 100

ROTARY UNIONS FOR GENERAL SPECIFIC ( CUSTOMIZED ) APPLICATIONS ( SPECIFIC )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

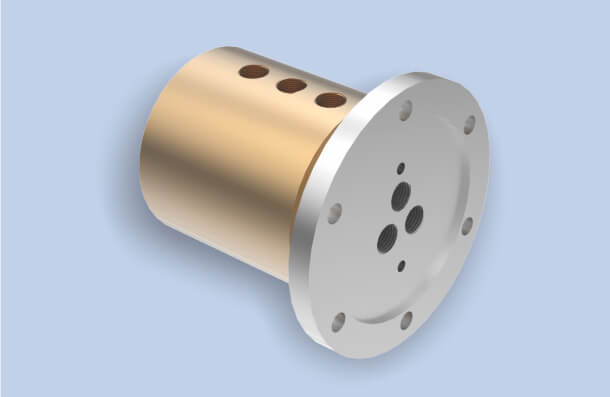

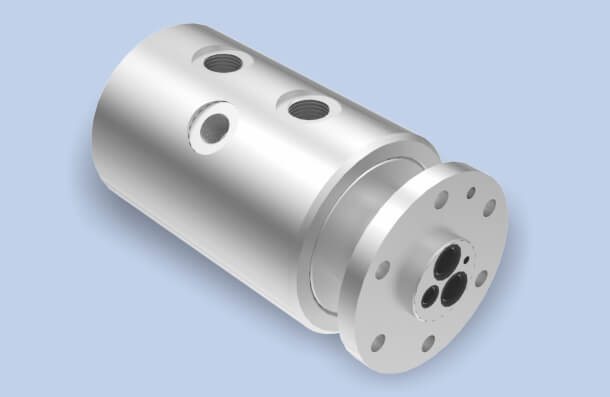

FMMP 3 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS 3/8" 3 250 175 10 TO 250

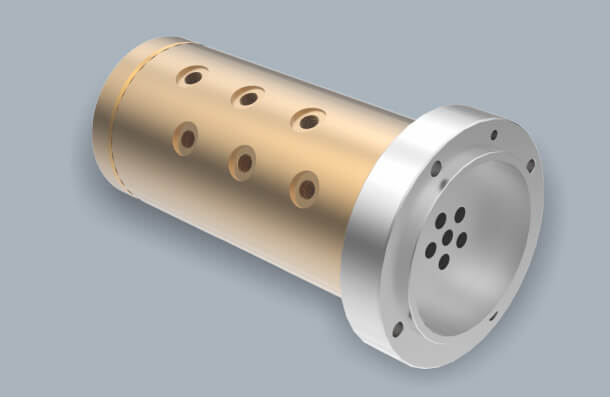

FMMP 4 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS 1/8" 4 AIR 150 175 10 TO 250
FMMP 3 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS (2) x 3/8" (1) x 1/4" 3 150 175 250
FMMP 6 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS 1/4" 6 150 175 250
FMMP 9 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS 1/2" 9 10kg / cm2 80 10 TO 250

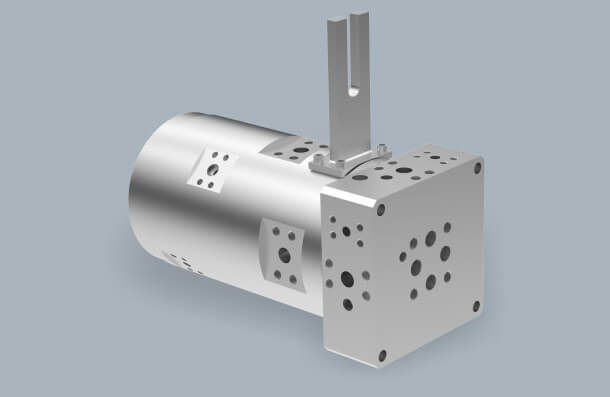

FDFM MULTI PASSAGE ROTARY UNIONS 1" & 1-1/2" 8 950 175 15

ROTARY UNIONS FOR GENERAL SPECIFIC ( CUSTOMIZED ) APPLICATIONS ( SPECIFIC )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM
FD 4000 FLANGE MOUNTED SIX PASSAGE AIR HYDRAULIC ROTARY UNIONS 3/8" 6 AIR 145 HYD. 870 175 250

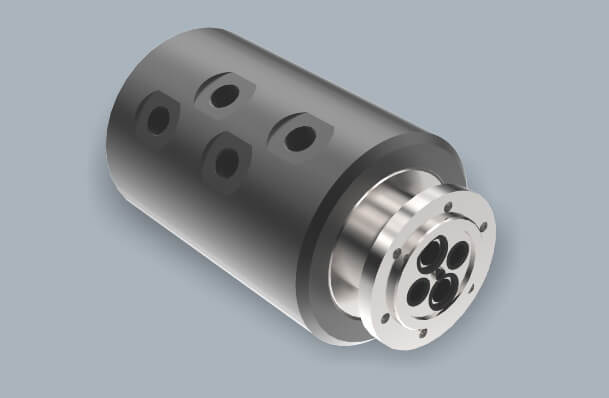

FD 4000 4 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS (2) x 3/4" & (2) x 1/2" 4 150 175 10 TO 250

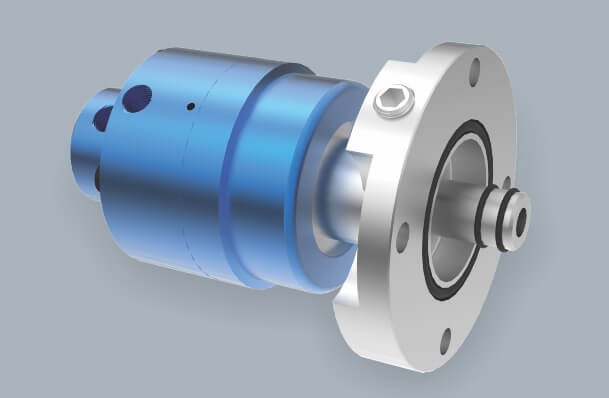

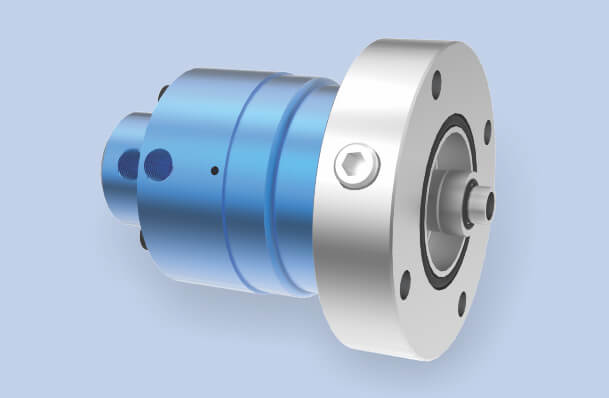

FDAF-DP FLANGE MOUNTED DUAL PASSAGE AIR / OIL ROTARY UNIONS 1/4" 2 150 121 1200

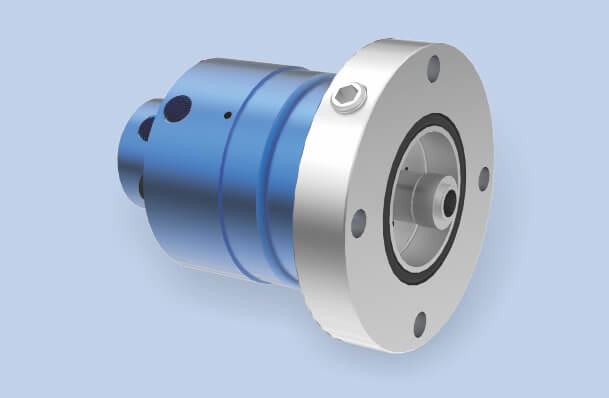

FDAF-DP FLANGE MOUNTED DUAL PASSAGE AIR ROTARY UNIONS 1/4" 2 150 121 1000
FDAF-DP FLANGE MOUNTED DUAL PASSAGE AIR ROTARY UNIONS 1/2" 2 150 121 1000

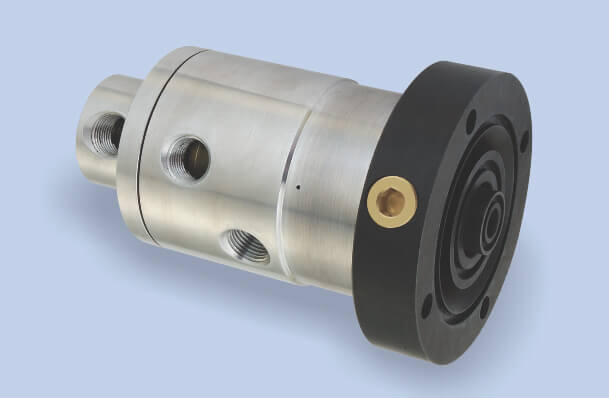

FDAF-TP FLANGE MOUNTED TRIPLE PASSAGE AIR HYDRAULIC ROTARY UNIONS 1/2" 3 150 --- 1000

ROTARY UNIONS ' LADLE TURRET 'FOR CONTINUOUS CASTING OPERATIONS ( SPECIFIC - AHS-LT SERIES )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

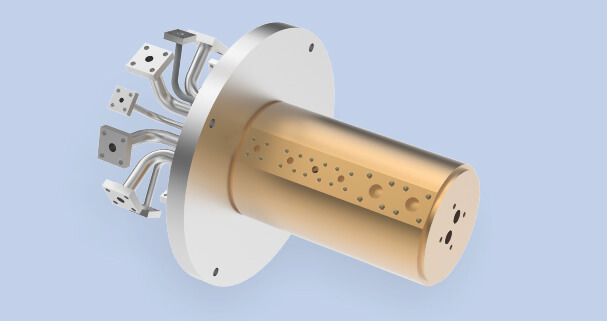

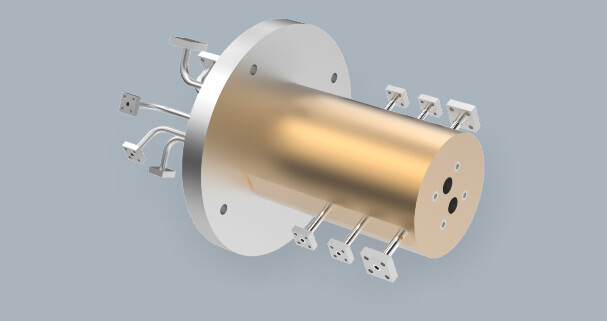

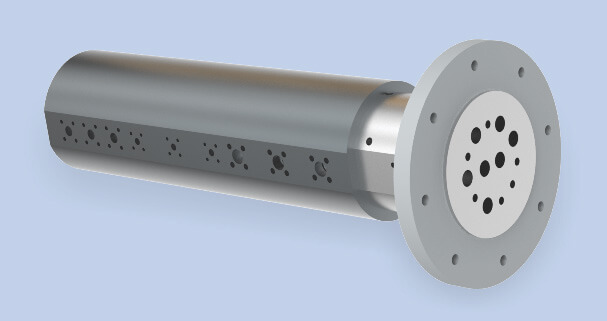

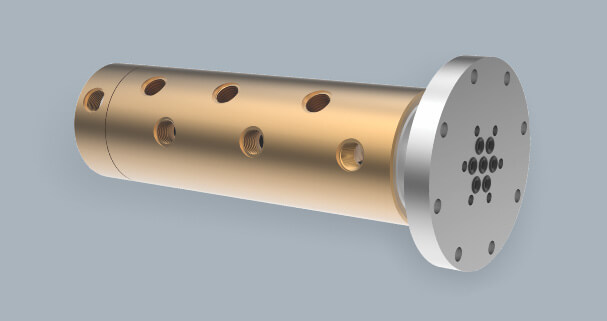

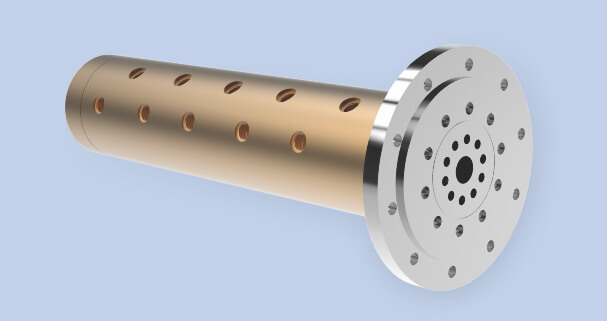

FDLT 7 Passage --- 7 HYD.OIL 2900 COMP. AIR 116 HYD.OIL 3045 COMP. AIR 145 160 600 500
FDLT 10 Passage --- 10 HYD.OIL 3045 COMP. AIR 145 160 10
FDLT 10 Passage --- 10 ARGON-150 WATER-300 AIR- 150 HYD. OIL-3625 250 20
FDLT 6 Passage 1/2" TO 3/4" 6 HYD.OIL 3625 COMP. AIR 145 176 10
FDLT 11 Passage 1/2" TO 3/4" 11 4570 176 1

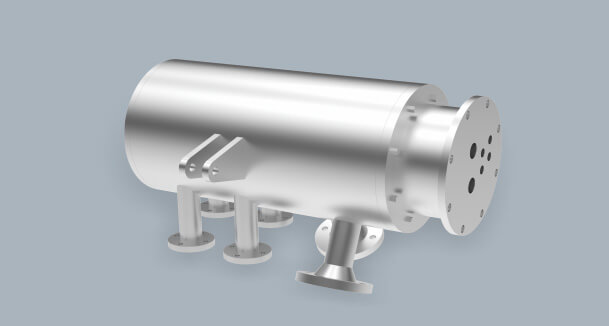

LARGE ROTARY UNIONS FOR STEEL PLANT APPLICATIONS ( SPECIFIC - LRJ SERIES )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

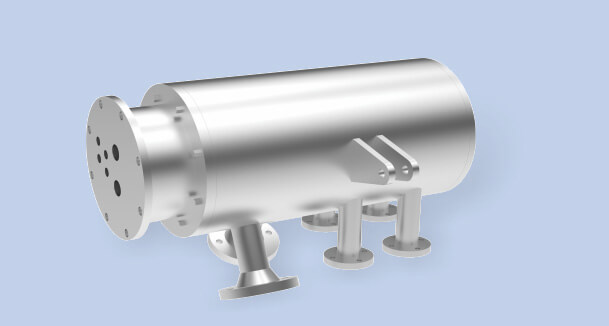

LRJ 4 PORT / PASSAGES LARGE ( IN DIAMETERS ) ROTARY UNIONS 2" X 2-1/2" 4 90 175 6
LRJ 6 PORT / PASSAGES LARGE ( IN DIAMETERS ) ROTARY UNIONS 3/4" X 2" 6 90 175 6

ROTARY UNIONS / ROTO UNITS FOR GREASE APPLICATIONS ( SPECIFIC - FGU SERIES )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

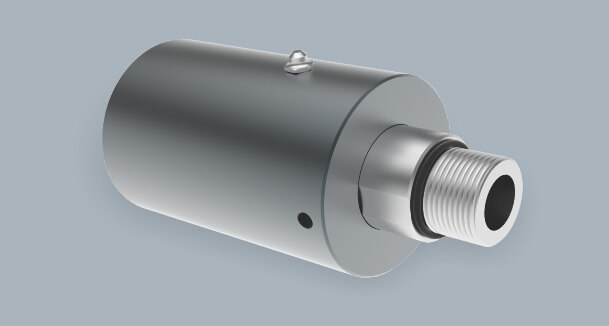

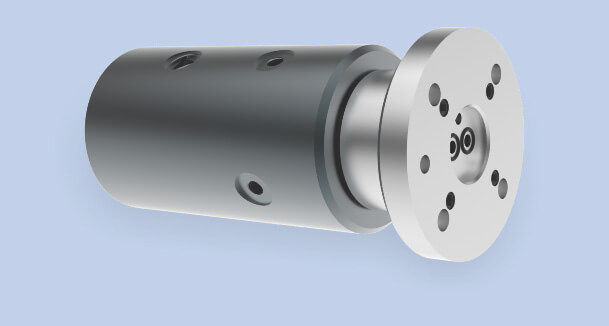

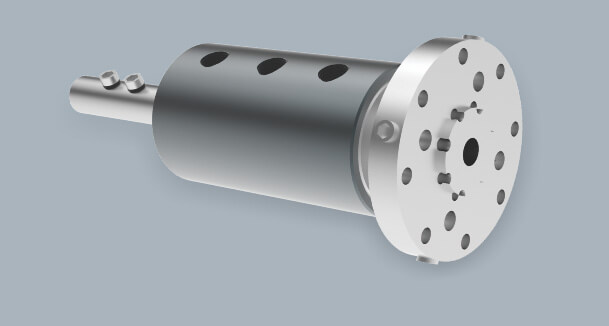

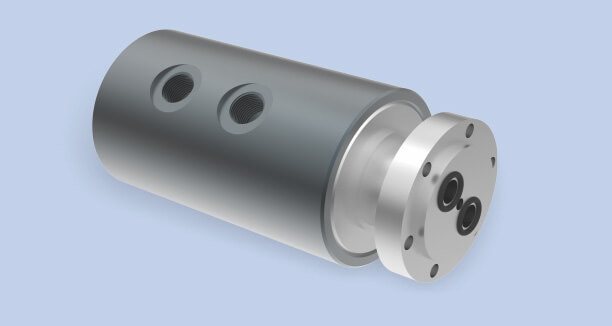

FGR 2 PASSAGE --- 2 5075 205 100

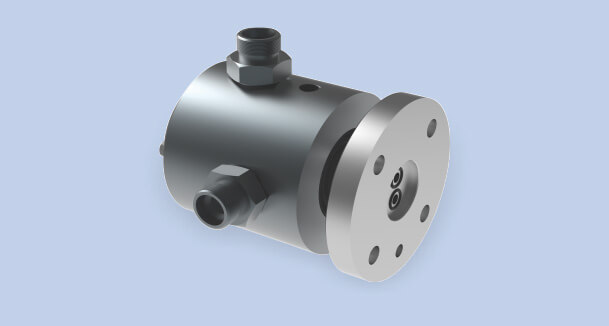

FGR 3+2 PASSAGE --- 3+2 HYDR. 1450 GREASE 5800 160 450 600
FGR 2 PASSAGE 1/2" 2 5800 175 200
FGR 1 PASSAGE 1" 1 4350 175 200
FGR 2 PASSAGE 3/8" 2 3625 175 800

ROTARY UNIONS FOR GENERAL SPECIFIC ( CUSTOMIZED ) APPLICATIONS ( SPECIFIC )

Product Photo TYPE DESCRIPTION PORT SIZES No OF INLET PORTS/ PASSAGE MAX. OPERATING DATA
Pressure PSI Temp. °F Speed RPM

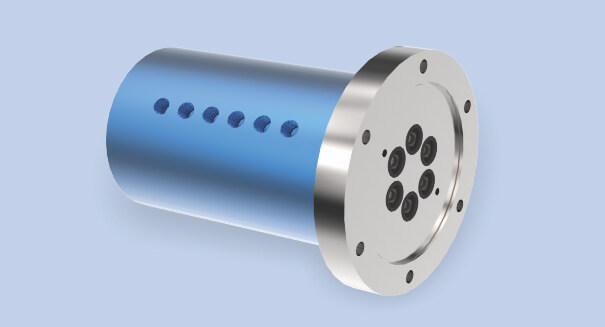

FDU SP 6000 6 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS 1/4" 6 AIR 150 HYD 6000 175 10 TO 250

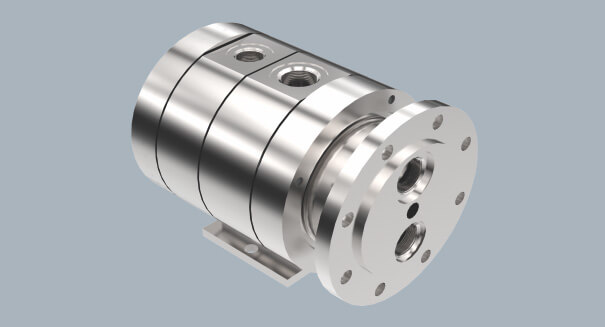

FMP FB3-2550 2 PASSAGE MULTI PURPOSE AIR HYDRAULIC ROTARY UNIONS 1-1/16" 2 AIR 150 175 10 TO 250

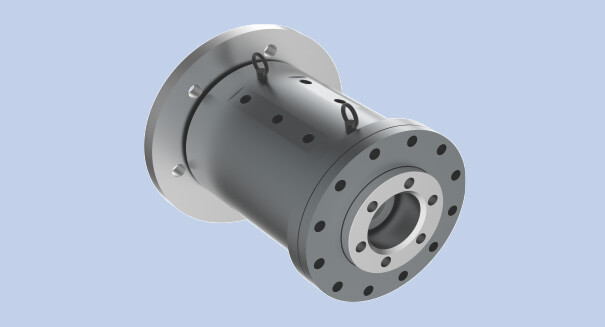

FMP-SPL MULTI PASSAGE HIGH PRESSURE ROTARY UNIONS ---- 2 TO 20 150 175 250

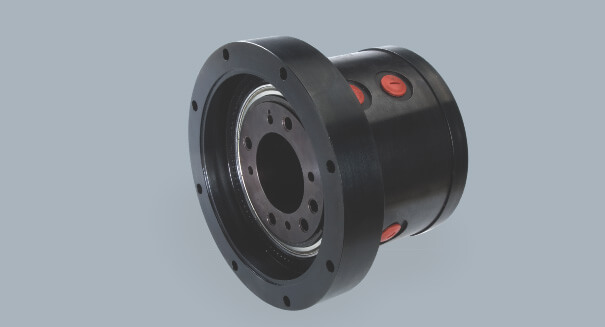

FDC MULTI PASSAGE HIGH PRESSURE ROTARY UNIONS 1/2" 3 1000 121 1000
Cross Reference world wide

‘Fourwents’ Rotary unions are equivalent to fit against various brands of the world
